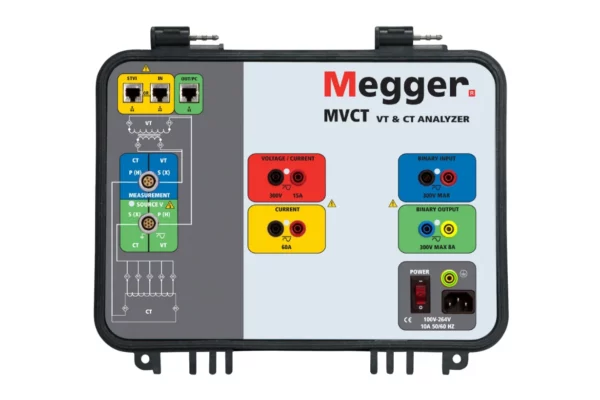

Megger MVCT VT and CT Analyser

• Measurements: Outputs 30 A/200 VA continuous, 75 A/300 VA short-term, 0-300 V AC/DC (300 VA), measures CT ratio (0.8-20000, ±0.02%), VT ratio (1-2450, ±0.03%), phase angle (±3 min), winding resistance (0-30 Ω, ±0.5%), insulation (500/1000 V, 20 GΩ), CT knee points up to 40 kV (DC technique).

• Functionality: Tests CT saturation, ratio, polarity, winding resistance, insulation, demagnetization, burden, VT ratio, polarity, excitation, impedance, single-phase relay testing (overcurrent, voltage, impedance, etc.), simultaneous multi-tap CT testing, complies with IEEE C57.13.1, IEC 61869, automated test plans.

• Design: Ultra-light (9.07 kg), 36 x 19.3 x 30.5 cm, rugged enclosure, operates -10 to 50°C, optional TFT LCD, Ethernet, USB, meets IEC 61010, CSA 22.2 standards.

• User-Friendly: TFT LCD touchscreen or PowerDB/STVI control, automated testing, stores 1000+ test results, real-time saturation curve display, USB export, no lead changes for multi-tap CTs, customizable reports.

• Complete Kit: MVCT (with/without display), PowerDB Lite, power cord (NA/EU/UK/Int), Ethernet cable, manual, test leads (standard/long), carry case, ground lead, USB stick, one-year warranty, optional relay, VT testing upgrades.

The Megger MVCT VT and CT Analyzer is an ultra-portable unit (9.07 kg) for testing current and voltage transformers, offering outputs of 30 A/200 VA continuous, 75 A/300 VA short-term, and 0-300 V AC/DC (300 VA). It performs CT saturation (up to 40 kV via DC), ratio, polarity, winding resistance, insulation, and demagnetization tests, alongside VT ratio, polarity, excitation, and impedance tests. Optional single-phase relay testing includes overcurrent, voltage, and impedance relays.

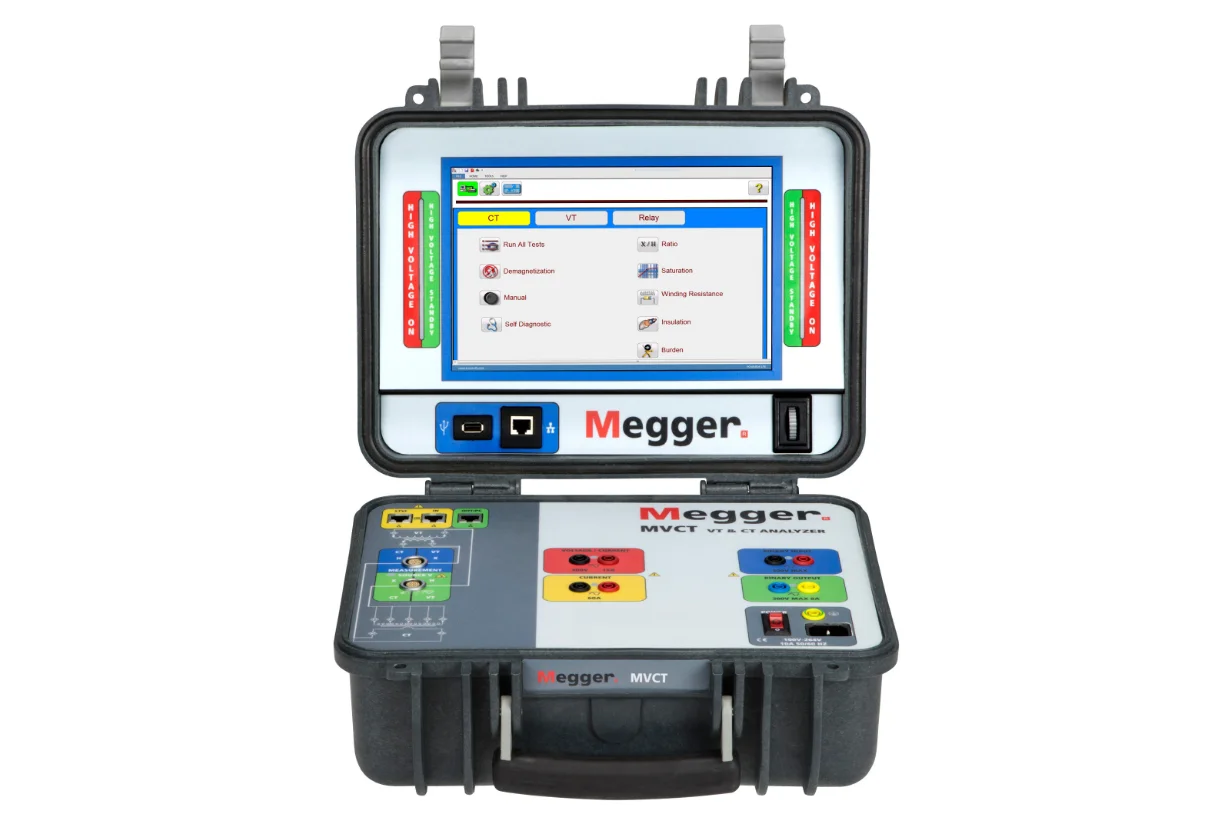

Supporting simultaneous multi-tap CT testing, it reduces test time significantly. Controlled via TFT LCD, PowerDB, or STVI, it features automated testing, real-time saturation curve display, and stores over 1000 test results. Housed in a rugged enclosure, it meets safety standards (IEC 61010). The kit includes the unit, software, test leads, carry case, and one-year warranty, ideal for utility and industrial VT/CT testing.
