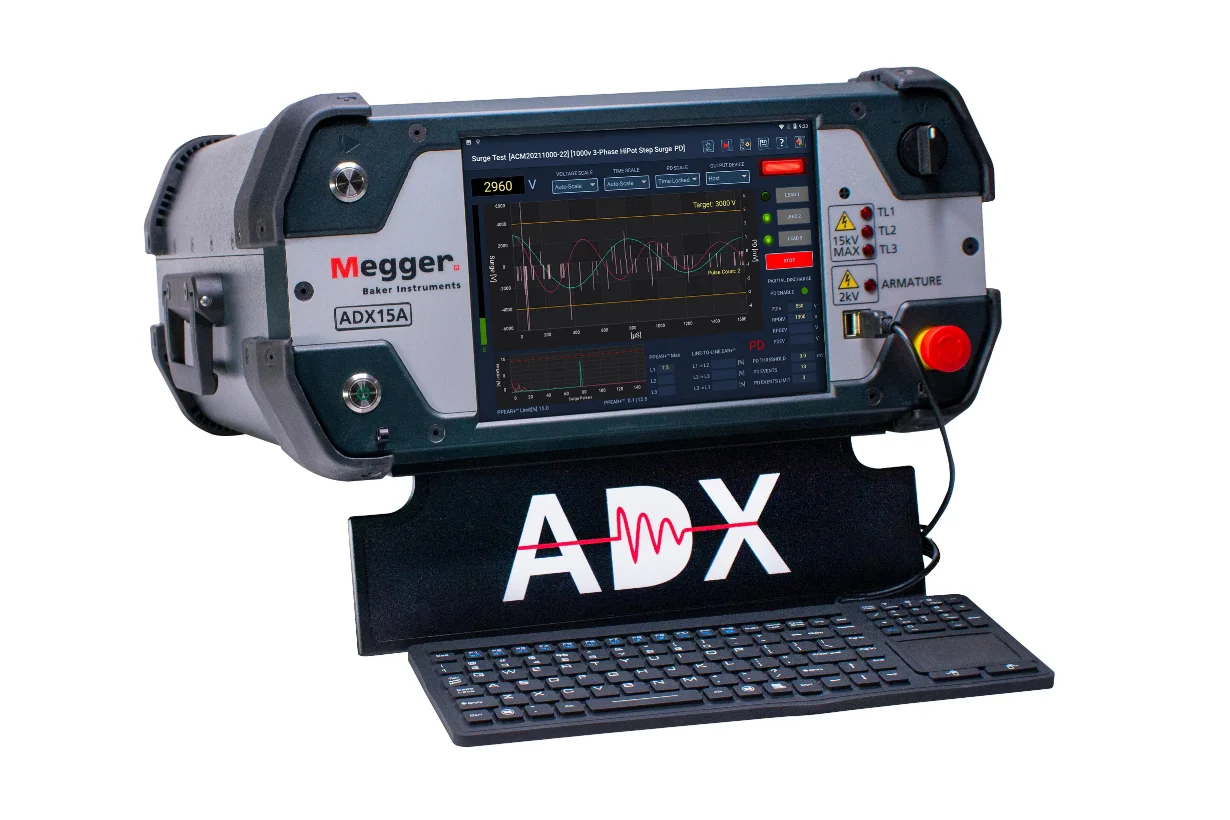

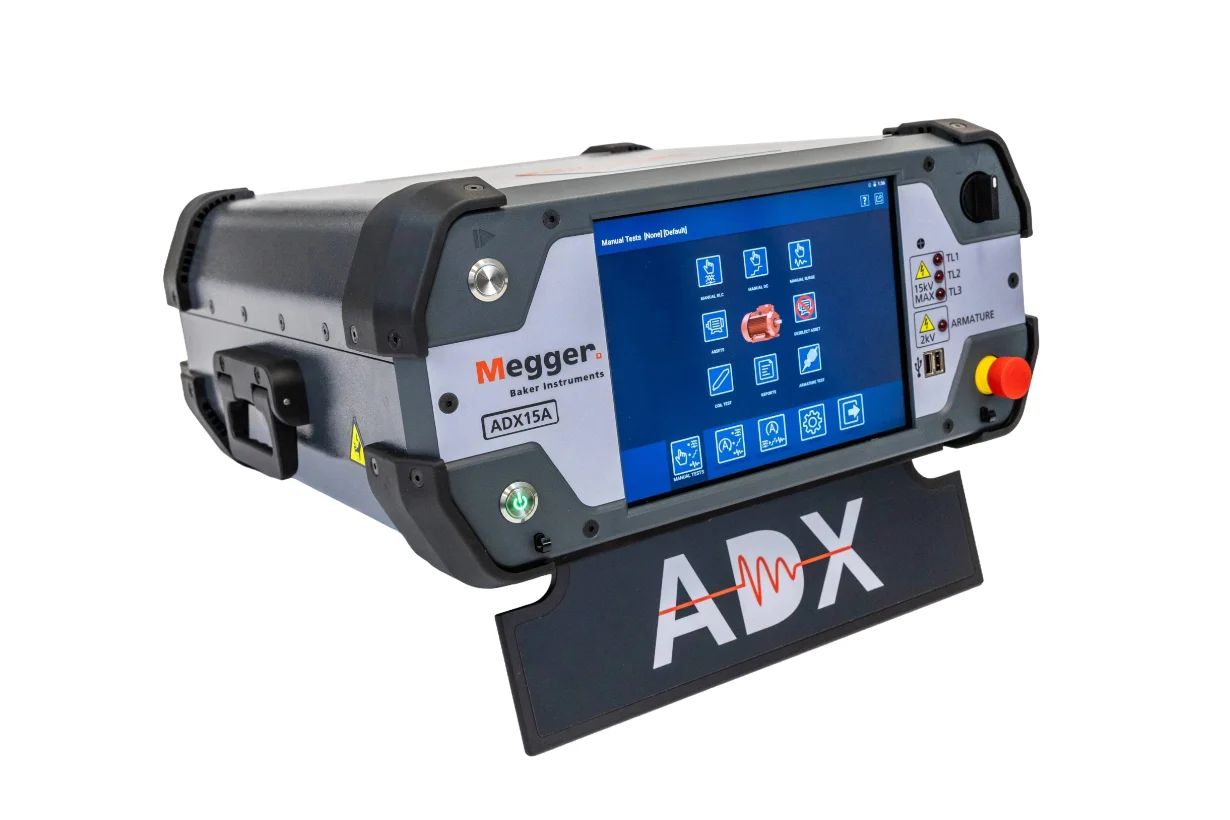

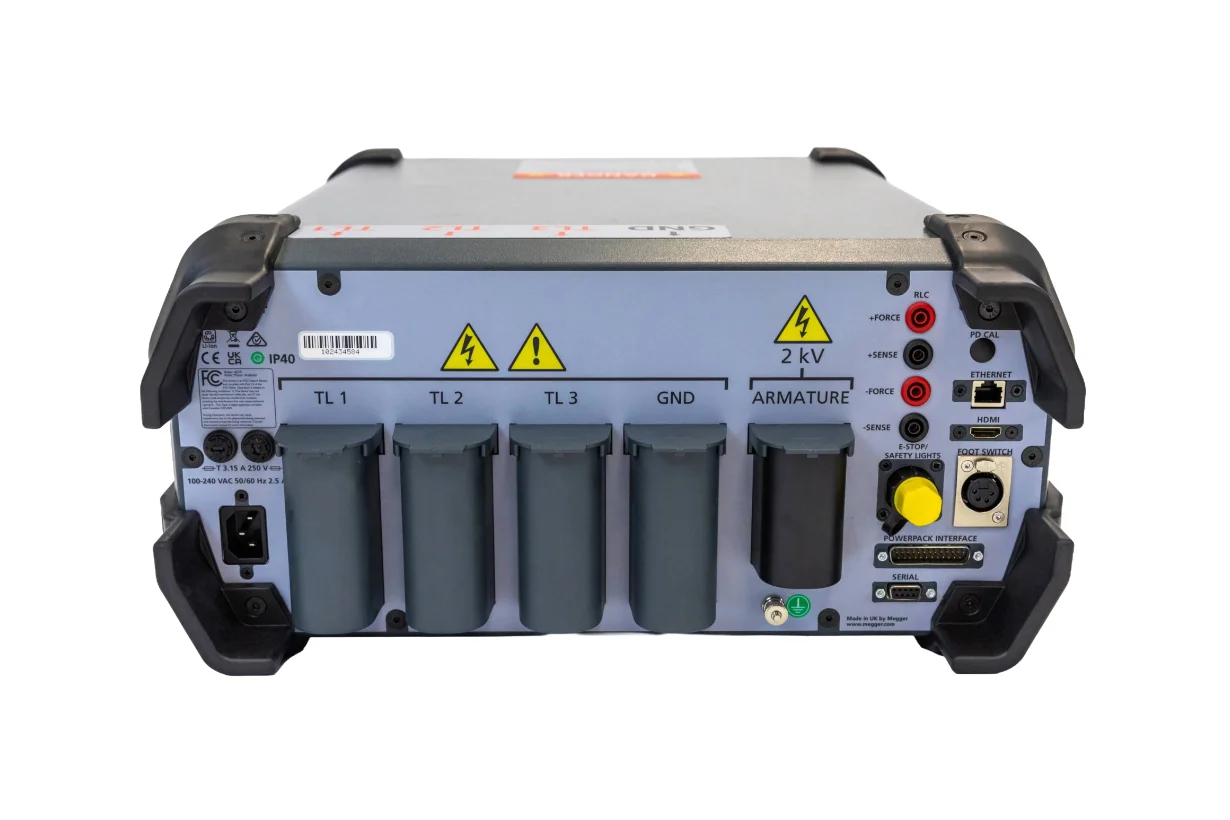

Megger ADX Automated Static Motor Analyser

• Measurements: Insulation resistance (100 kΩ-1 TΩ, ±2% ± 5 V), surge (4-15 kV, ±10%, 100 nF), partial discharge (PDIV/PDEV per IEC 61934), resistance (0.001 Ω-100 kΩ, ±2% ± 0.25 mΩ), inductance (0.01 μH-10 H, ±5% ± 5 μH), capacitance (0.01 nF-50 μF, ±5% ± 1 nF), armature surge (up to 1900 V, 0-20 μH).

• Functionality: Automated PI, DAR, step voltage, DC HiPot, surge with PD, 4-wire Kelvin tests, cloud-based PowerDB Dashboard sync, stores reference waveforms, on-board report generation, Wi-Fi/Ethernet/USB connectivity, 10.4-inch touchscreen, multilingual (English, French, Spanish, etc.).

• Design: 21-23 kg, CAT II 300 V, IP40, operates 5-40 °C, Li-ion battery backup (4+ hours standby), 457 x 584 x 216 mm, Android platform, 8GB storage, 480GB SSD.

• User-Friendly: Intuitive touch interface, remote asset configuration, glove-friendly, daylight-viewable display, data export (CSV, Word), safety interlocks, supports offline PowerDB Print Engine.

• Complete Kit: ADX (4/6/12/15 kV variants, optional RLC/PD/armature), standard test leads (3x red, 1x black), user guide, calibration certificate, optional accessories (Kelvin leads, foot switch, armature probes, backpack), one-year warranty.

The Megger ADX Automated Static Motor Analyzer tests motors with insulation resistance (100 kΩ-1 TΩ, ±2%), surge (4-15 kV, ±10%), partial discharge (IEC 61934), resistance (0.001 Ω-100 kΩ, ±2%), inductance (0.01 μH-10 H, ±5%), capacitance (0.01 nF-50 μF, ±5%), and armature surge (up to 1900 V). Available in 4/6/12/15 kV variants, it supports PI, DAR, step voltage, DC HiPot, and 4-wire Kelvin tests, with cloud-based PowerDB Dashboard for data sync and reporting.

Rated CAT II 300 V and IP40, the 21-23 kg analyzer operates in 5-40 °C, powered by mains (90-264 VAC) with Li-ion backup, featuring a 10.4-inch touchscreen and Android platform. Compliant with IEC 61010/61326, it offers a glove-friendly interface, remote configuration, and data export. Ideal for motor manufacturing and maintenance, the kit includes the ADX, test leads, guide, certificate, and a one-year warranty, with optional Kelvin leads and armature accessories.
