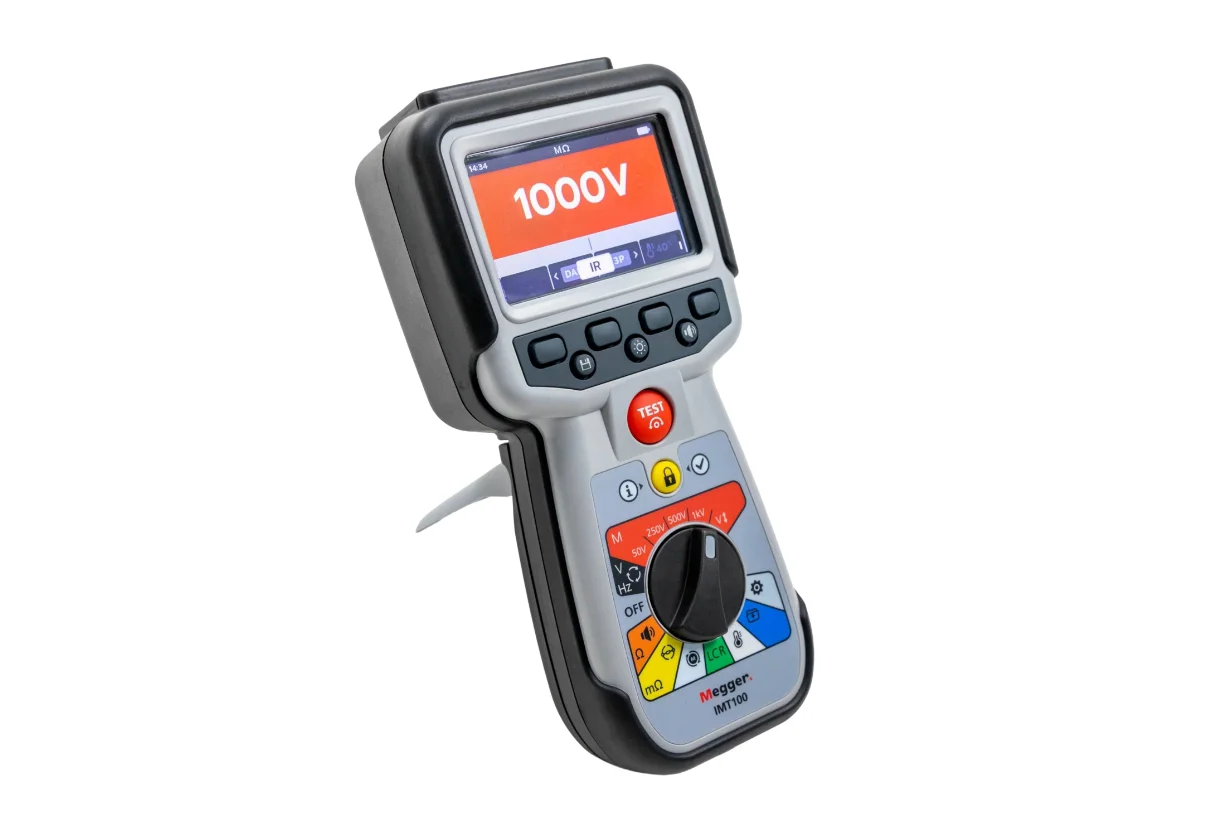

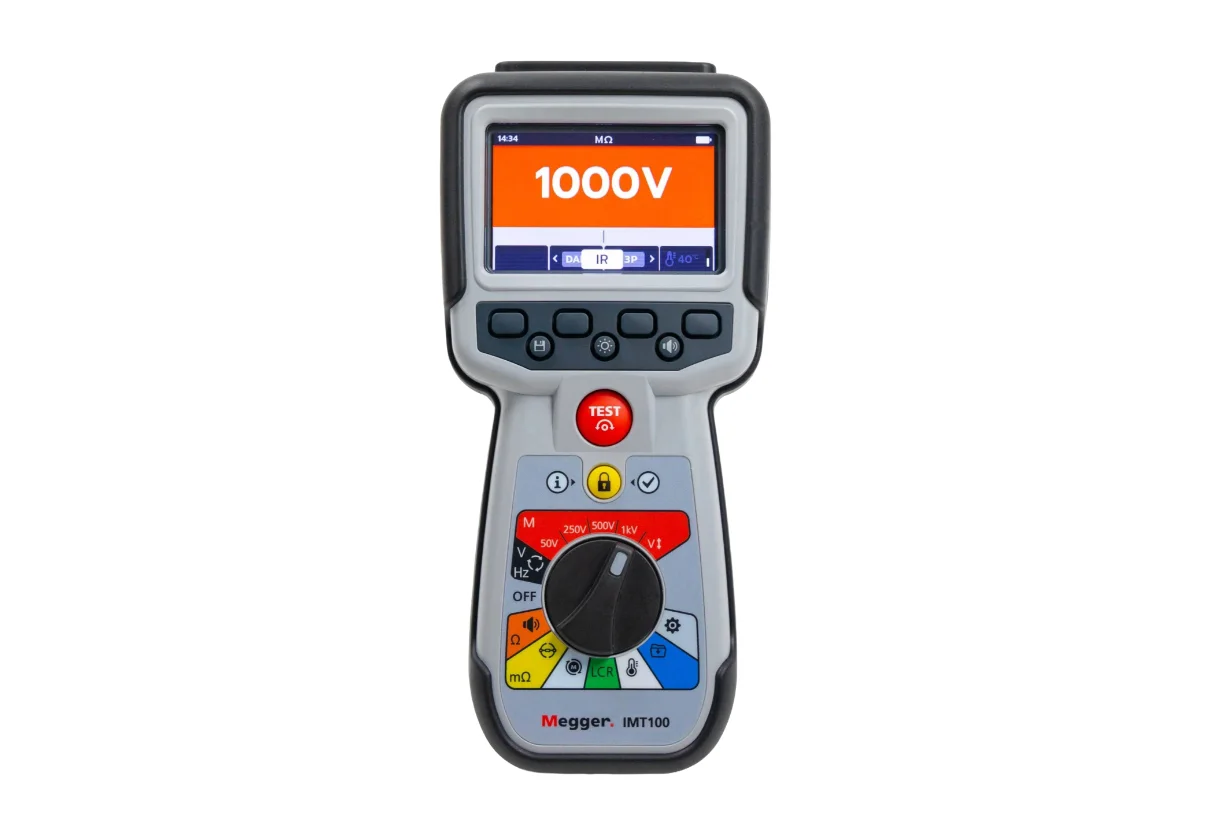

The Megger IMT100 Industrial Multi Tester is a versatile handheld instrument for photovoltaic, electric vehicle, and industrial applications, offering over 13 testing functions. It measures DC/AC voltage (0-1000 V, ±2%), insulation resistance (100 Ω to 200 GΩ, ±2% ± 2 digits), continuity (0.01 Ω to 1 MΩ, ±2% ± 4 digits), 4-wire Kelvin low resistance (1 mΩ to 10 Ω, ±0.25% ± 10 digits), capacitance (0.1 nF to 1 mF, ±5% ± 2 digits), inductance (2 mH to 1 H, ±0.7-2%), temperature (-20 °C to 1000 °C, ±1 °C ± 20 digits), and diode voltage (0-3 V, ±2%).
Features include PI, DAR, timed insulation tests, phase rotation, 2/3/4-wire testing, and a guard terminal to eliminate leakage errors. The 0.93 kg, IP54-rated tester, with CAT III 600 V safety up to 3000 m, operates in -10 °C to 50 °C, powered by 6x AA/NiMH batteries (1200 insulation/continuity tests) with a mains charger. Its full-color display, rotary dial, and soft keys simplify use, with 256-test storage and USB data transfer to PowerDB. Safety features include live circuit detection and test lockout (25-75 V).
The kit includes a hook strap, multipurpose carrycase, remote probe, T-type thermocouple, insulation lead set (grabber clips, 2 m leads, probes), Kelvin clip/probe leads, and PV adaptors (MC4/MC3). Backed by a one-year warranty, the IMT100 ensures robust, comprehensive testing.
