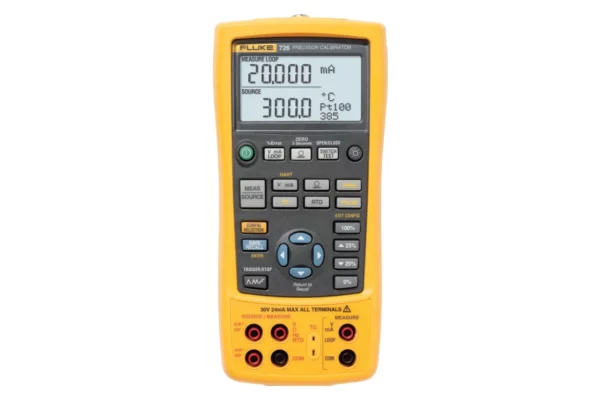

Fluke 726 Precision Multifunction Process Calibrator

Fluke 726 Precision Multifunction Process Calibrator

  • Measures and sources voltage (0-30 V), mA (0-24 mA), RTDs, thermocouples, frequency, and resistance with 0.01% accuracy.
  • HART mode with built-in 250-ohm resistor for seamless transmitter calibration.
  • Supports 29 Fluke 700Pxx Pressure Modules for pressure measurement/sourcing (pump required).
  • Dual channels for simultaneous measurement and sourcing of process signals.
  • Stores up to eight calibration results and five test setups for field recall.
  • Integrated pressure switch test captures set, reset, and deadband values.
  • 24 V loop supply powers transmitters with simultaneous mA measurement.

The Fluke 726 Precision Multifunction Process Calibrator is a versatile, high-accuracy tool built for process industry pros who need to calibrate nearly anything with ease and precision. Offering 0.01% accuracy, it measures and sources a wide range of parameters—0-30 V, 0-24 mA, RTDs, thermocouples, frequency up to 15 kHz, and resistance up to 4000 ohms—while supporting pressure calibration with 29 Fluke 700Pxx modules (pump required). Its dual-channel design lets you measure and source signals simultaneously, and the HART mode, with a 250-ohm resistor, simplifies transmitter calibration.

The 726 shines with features like integrated pressure switch testing, transmitter error percentage calculations, and storage for eight calibration results and five test setups for quick field recall. Auto step/ramp and frequency totalizer modes streamline linearity and flowmeter tests, while the 24 V loop supply powers transmitters during mA measurements.

Built tough with a 1-meter drop test rating, powered by four AA batteries for 25 hours, and backed by a three-year warranty, the 726 is a reliable, all-in-one calibrator that delivers unmatched flexibility and precision for demanding process environments.
