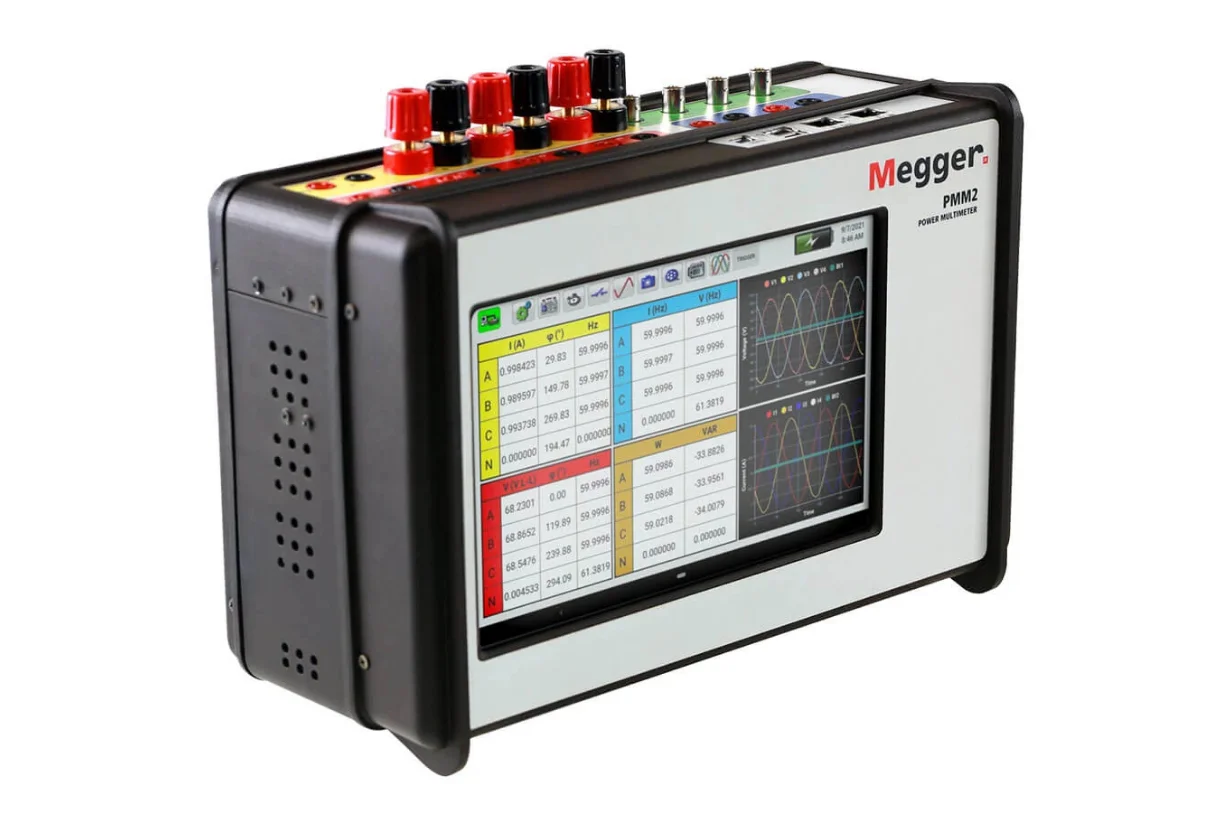

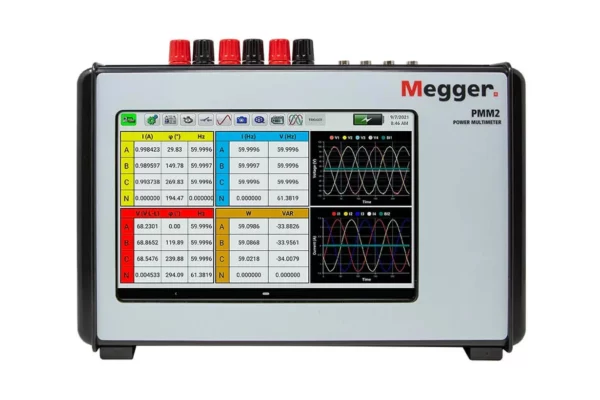

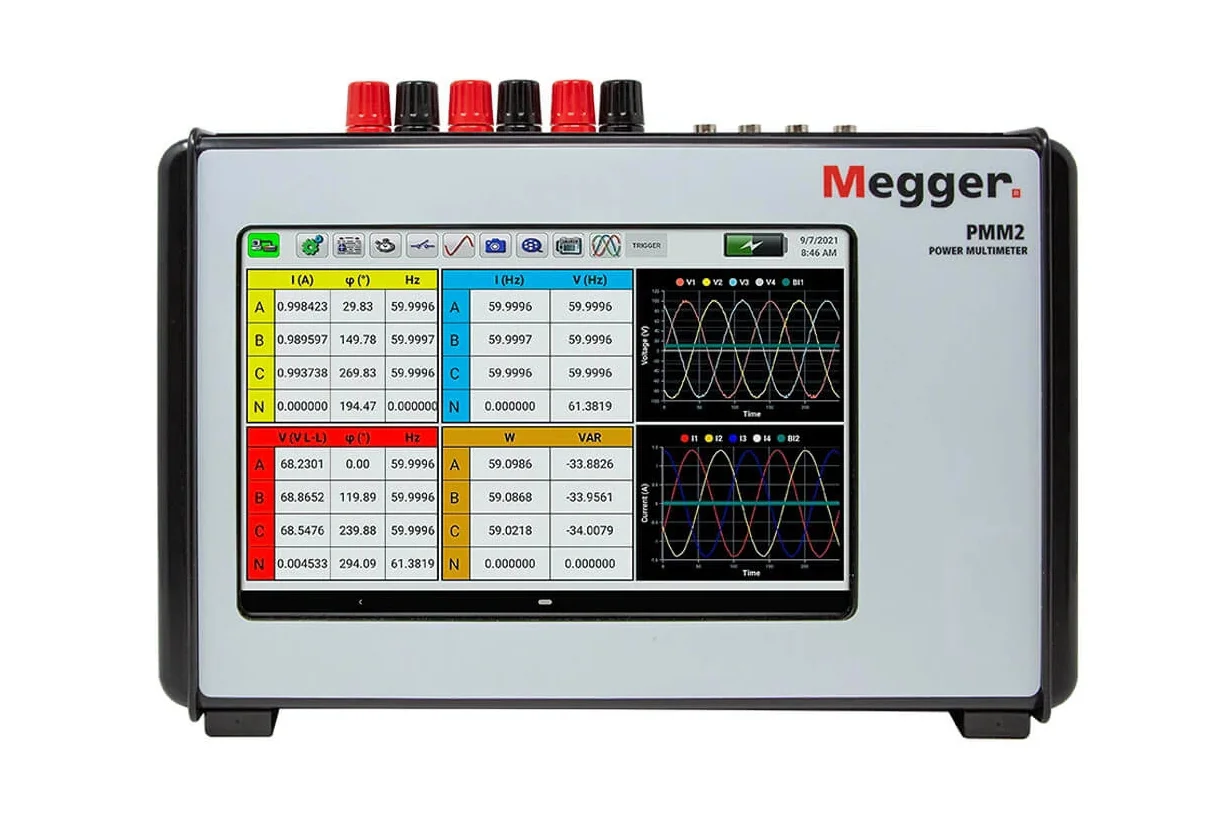

Megger PMM-2 Multi-function Measuring Instrument

• Measurements: Voltage (0-1000 V AC/DC, ±0.05%), current (0-100 A AC/DC, ±0.05-1%), phase angle (0-360°, ±0.08°), power (±100 kW, ±0.2%), reactive power (±100 kVAr, ±0.2%), power factor (±1.00, 0.01 PF), frequency (10-1000 Hz, ±4 ppm), harmonics (up to 50th, ±5%), timing (200 µs resolution).

• Functionality: Measures single/two/three-phase systems, 4 isolated channels (neutral current option), clamp-on CT support (9999:1/5 ratio), vector/waveform displays, customizable reports, 600s data recording, Ethernet/USB connectivity, timer for trip events.

• Design: 6-7.7 kg, PMM-2 (342.9 x 228.6 x 152.4 mm) or PMM-2R (457.2 x 241.3 x 342.9 mm), 10.1-inch TFT LCD touchscreen (1280×800), IP20, operates -15 to 55°C, Li-ion battery (4+ hours, 97.2 Wh), 90-253 V AC.

• User-Friendly: Intuitive touchscreen, customizable phase labels (ABC, RST, etc.), multilingual (English, French, Spanish, German), sunlight-readable, glove-friendly, stores setups/reports, EN 61010-1 CAT IV 600V/CAT II 1000V compliant.

• Complete Kit: PMM-2/PMM-2R, power cord (North American/International/Europe/UK), Ethernet cable, soft carry case (PMM-2 only), manual USB stick, one-year warranty, optional test leads/clips/probes.

 The Megger PMM-2 Multi-function Measuring Instrument is a versatile tool for substation and meter testing, measuring voltage (0-1000 V, ±0.05%), current (0-100 A, ±0.05-1%), phase angle, power, reactive power, power factor, frequency, and harmonics (up to 50th) in single/two/three-phase systems. With 4 isolated channels, it supports clamp-on CTs, displays vector/waveform graphics, and records 600s of data.

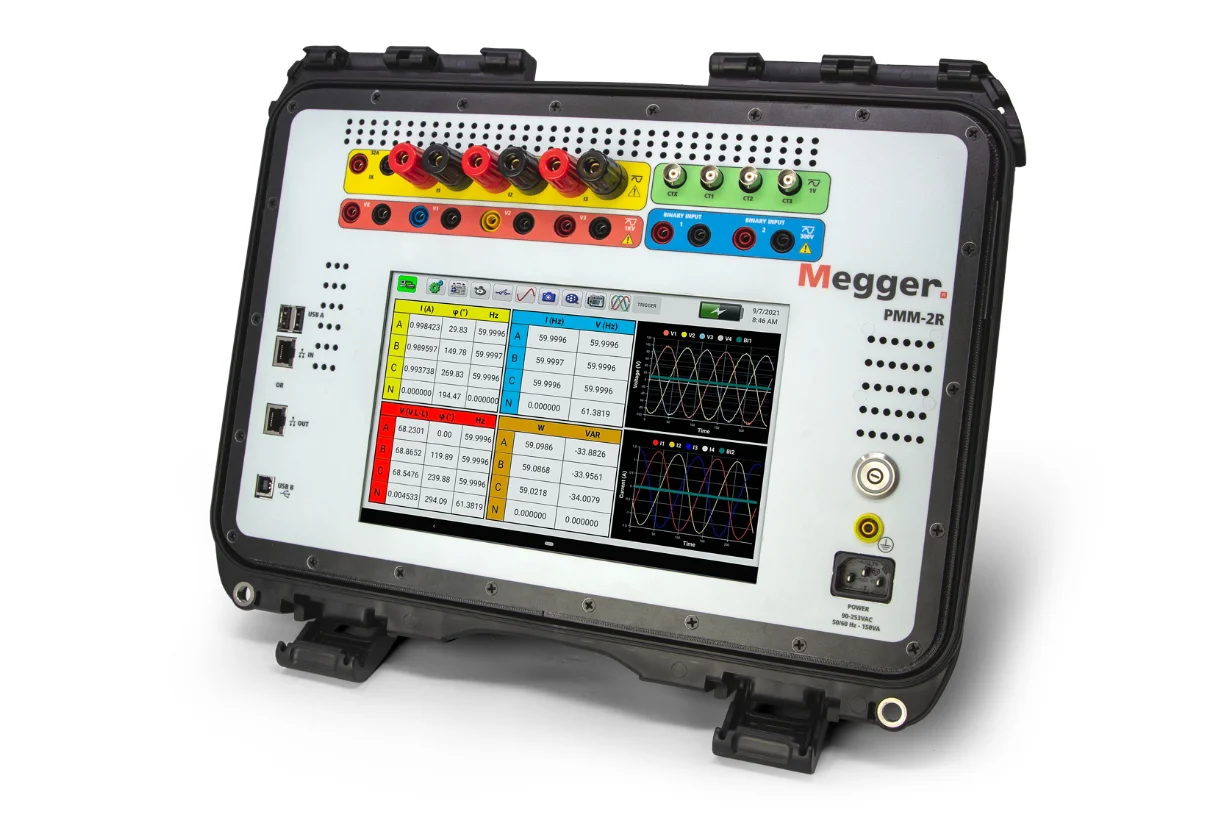

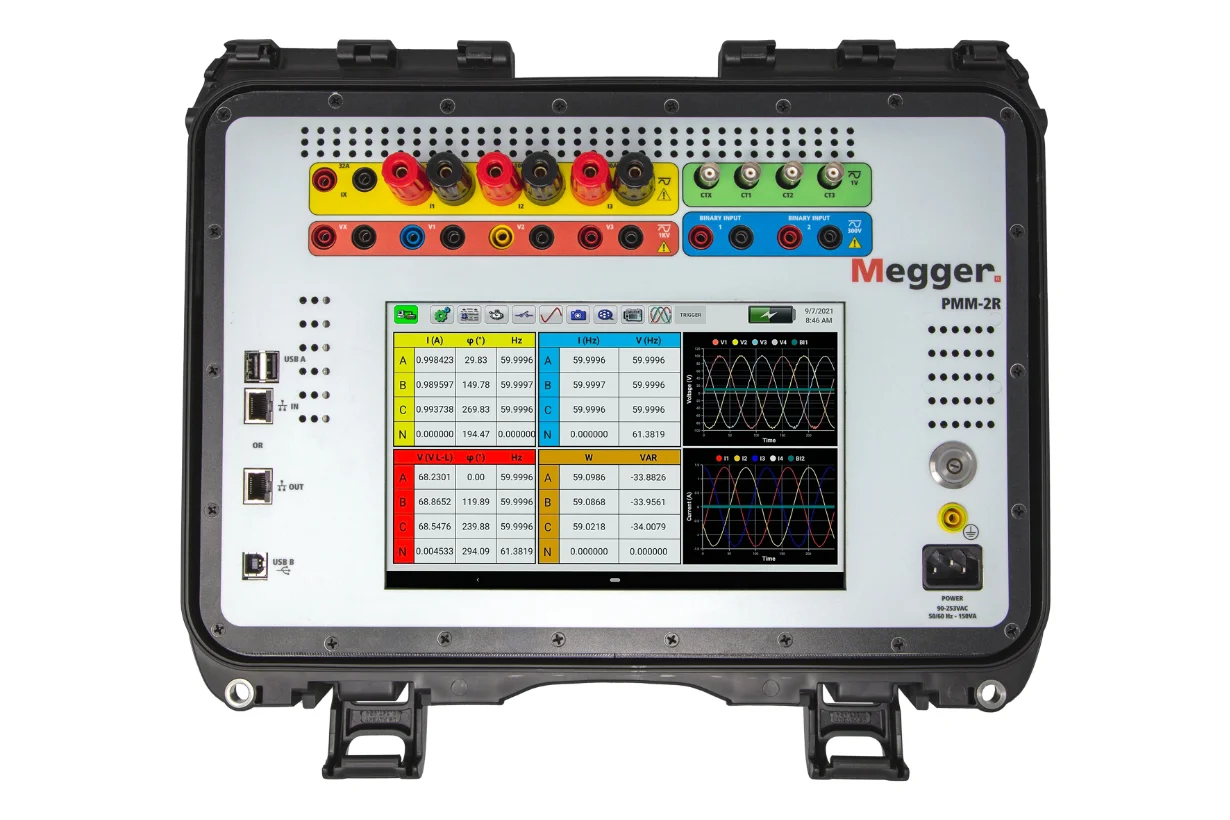

Featuring a 10.1-inch touchscreen, IP20 rating, and Li-ion battery (4+ hours), it operates in -15 to 55°C. The 6-7.7 kg unit, available in standard (PMM-2) or rugged (PMM-2R) models, offers Ethernet/USB connectivity, customizable reports, and EN 61010-1 CAT IV 600V safety. The kit includes the instrument, power cord, Ethernet cable, carry case (PMM-2), manual, and a one-year warranty, ideal for commissioning and maintenance.
