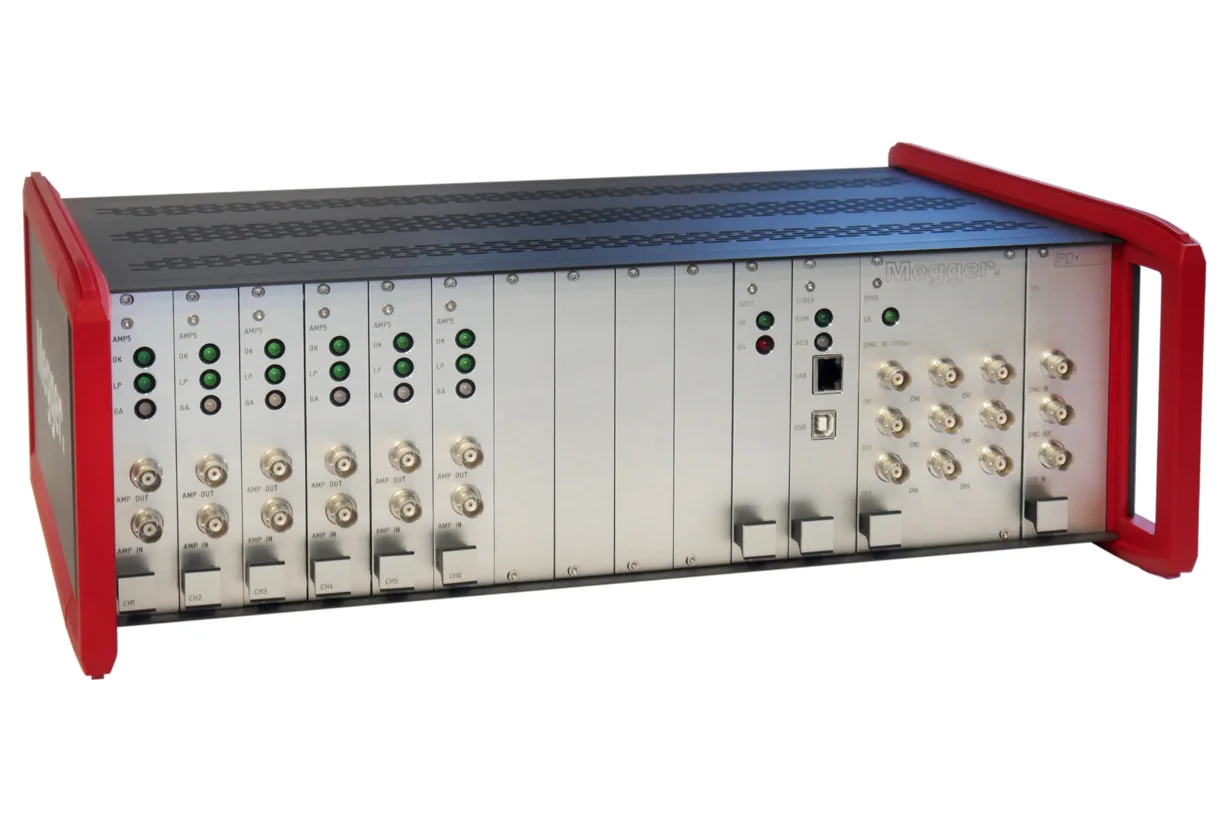

Megger ICMsystem – Versatile PD Measurement System

• Modular partial discharge measurement system for a wide range of HV assets
• Supports laboratory, factory, on-line, and off-line testing applications
• Provides PD spectrum analysis, high-voltage measurement, and RIV measurement
• Supports cable PD fault location and acoustic fault location
• Offers up to ten parallel measurement channels for simultaneous testing
• Advanced noise gating improves measurement quality in challenging environments
• Supports international standards for PD and RIV acceptance testing

The Megger ICMsystem Versatile PD Measurement System provides flexible partial discharge testing for medium- and high-voltage assets. It supports laboratory quality assurance, factory acceptance testing, and on-site diagnostics. As a result, organisations can use one platform across multiple testing applications.

The ICMsystem adapts to a wide range of assets, including transformers, rotating machines, GIS, AIS, high-voltage cables, bushings, insulators, and capacitors. Furthermore, its modular design allows users to configure the system to meet specific testing requirements.

The system offers advanced diagnostic functions such as PD spectrum analysis, high-voltage measurement, cable fault location, acoustic fault location, and radio interference voltage measurement. In addition, users can equip the system with up to ten parallel measurement channels for simultaneous PD and RIV testing.

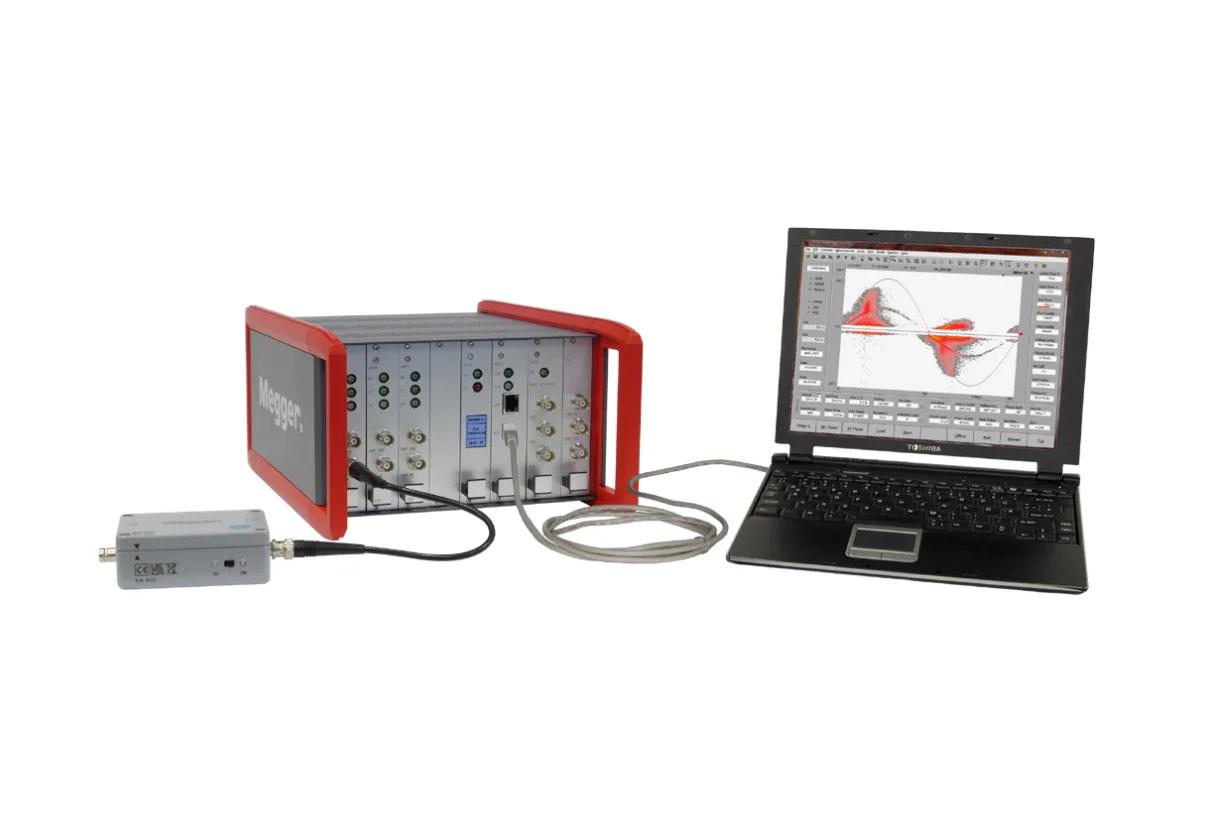

The ICMsystem Versatile PD Measurement System delivers clear partial discharge patterns and powerful analysis tools. Consequently, engineers can identify insulation defects more quickly and make informed maintenance decisions.

Whether performing acceptance testing or investigating insulation problems in the field, the ICMsystem provides accurate measurements, flexible configuration options, and reliable diagnostic performance.
