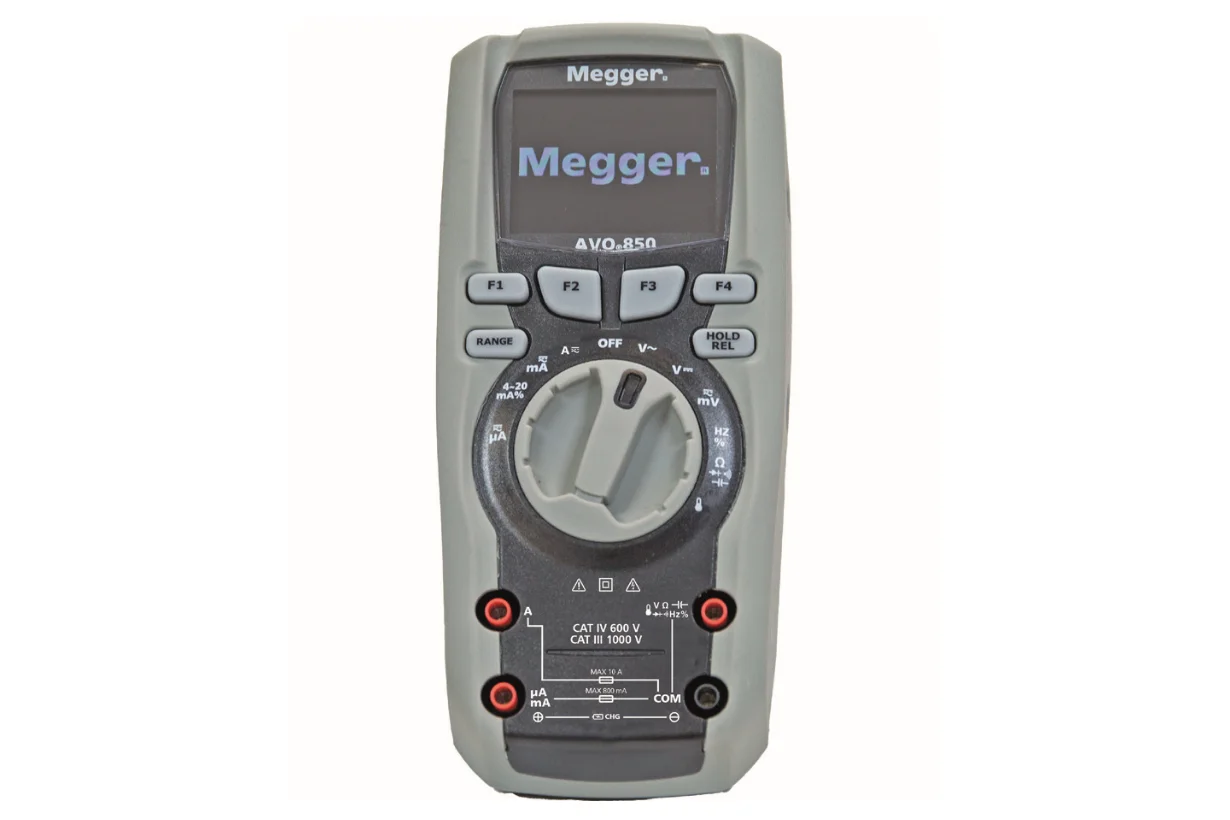

Megger AVO850 TRMS Digital Multimeter

Megger AVO850 TRMS Digital Multimeter

Megger AVO850 TRMS Digital Multimeter

Specification Sheet
  • Measurements: DC voltage (500 mV-1000 V, ±0.05-0.1% ± 5 digits), AC TRMS voltage (500 mV-1000 V, ±0.7-2% ± 5-20 digits), AC+DC voltage (5-1000 V, ±1.2-3% ± 20 digits), DC/AC current (500 µA-10 A, ±0.2-0.8% ± 5-8 digits), resistance (500 Ω-50 MΩ, ±0.2-0.5% ± 5-10 digits), capacitance (5 nF-10 mF, ±1-2.5% ± 8-20 digits), frequency (50 Hz-10 MHz, ±0.01% ± 5 digits), temperature (-200 to 1350 °C, ±1% ± 3 °C), 4-20 mA loop (% reading).
  • Functionality: 50000-count TFT LCD with analogue bar graph, continuity (<25 Ω, audible/visual), diode test (3.2 V), PEAK (>1 ms), data storage/recall, Bluetooth with Megger app, AC+DC mode, auto/manual ranging.
  • Design: 416 g, IP40, CAT III 1000 V/CAT IV 600 V, operates 5 °C to 40 °C, Li-ion rechargeable battery (300-500 cycles), 2 m drop test, 2000 m altitude.
  • User-Friendly: Bright 320×240 color display, intuitive interface, app for remote monitoring, rugged waterproof design, auto power-off (5-30 min).
  • Complete Kit: AVO850 multimeter, 1 m non-fused test leads, probes (CAT II/III/IV), crocodile clips, K-type thermocouple/adapter, soft case, Li-ion battery, charger, one-year warranty.

The Megger AVO850 TRMS Digital Multimeter is a high-precision tool for industrial and lab use, measuring DC/AC TRMS voltage (500 mV-1000 V, ±0.05-2%), DC/AC current (500 µA-10 A, ±0.2-0.8%), resistance (500 Ω-50 MΩ, ±0.2-0.5%), capacitance (5 nF-10 mF, ±1-2.5%), frequency (50 Hz-10 MHz, ±0.01%), temperature (-200 to 1350 °C, ±1%), and 4-20 mA process loops.

It features a 50000-count TFT LCD (320×240) with analogue bar graph, continuity (audible/visual, <25 Ω), diode test, PEAK capture, and Bluetooth connectivity with the Megger app for data sharing. IP40-rated, drop-tested to 2 m, and compliant with CAT III 1000 V/CAT IV 600 V (IEC 61010), the 416 g device operates in 5 °C to 40 °C, powered by a Li-ion battery (300-500 cycles). Its rugged design (170 x 79 x 50 mm) includes a bright display and >10 MΩ input impedance.

The kit includes the AVO850, non-fused test leads, probes, crocodile clips, K-type thermocouple/adapter, soft case, Li-ion battery, charger, and a one-year warranty, ideal for demanding electrical diagnostics.
