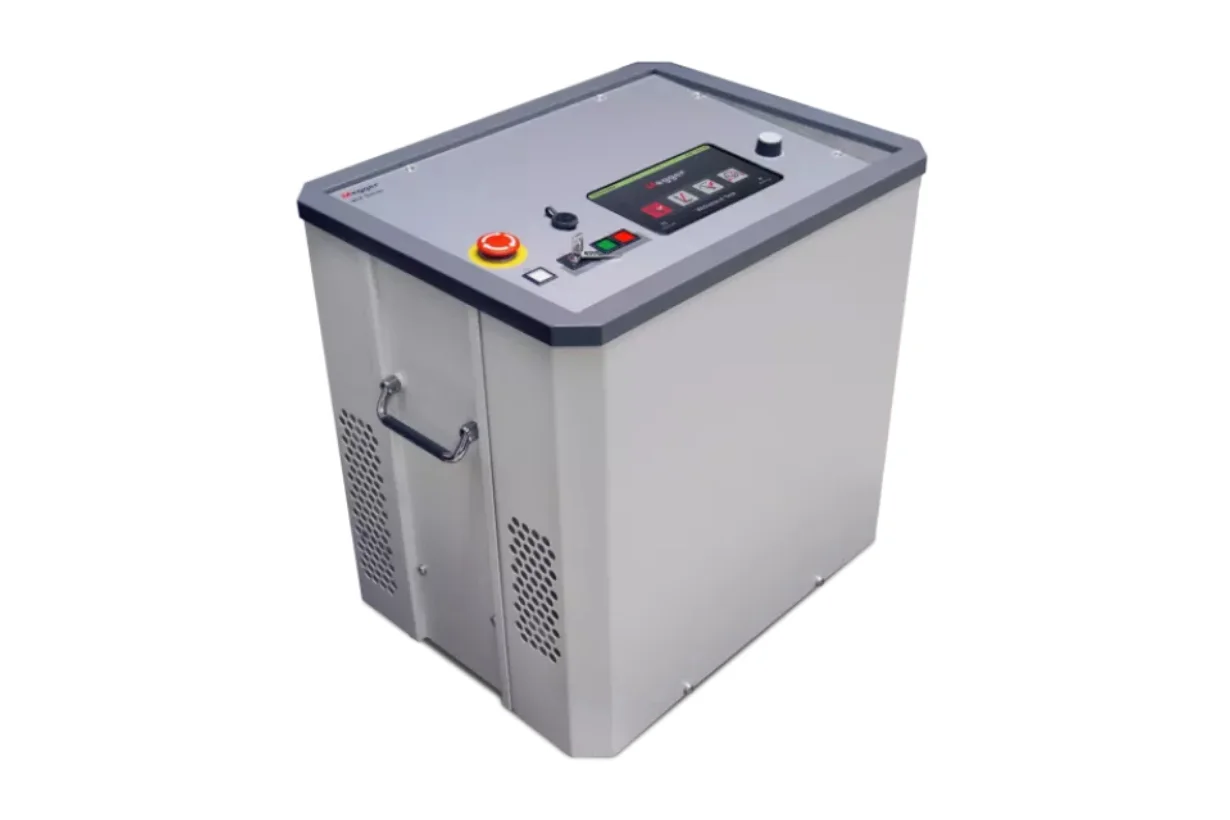

The VLF Sine Wave 45, with optional integrated tanδ, is a compact system for commissioning, testing and condition analysis of medium-voltage cables. This unit performs very low frequency (VLF), DC, and sheath integrity testing as well as sheath fault pinpointing when combined with the optional ESG NT step voltage probe. Ideal for both routine testing and complicated diagnostics, the VLF45 has a multi-purpose design with a continuous duty cycle.
For 0.1 Hz sine wave, rectangular or DC voltage tests, the VLF45 provides enhanced voltage quality and stability. In the event of excessive charge current integrated breakdown detection shuts down the test, ensuring limited damage to the cable. Up to 1000 measurements can be stored in the internal memory and results can be viewed on the unit or downloaded via the USB port to the included software for reporting.
An optional internal tanδ is available that automatically evaluates results for PE, XLPE and PILC type cables based on insulation and selected compliance standard. Combined with the optional ESG NT step voltage probe, the VLF45 can pinpoint sheath faults.
