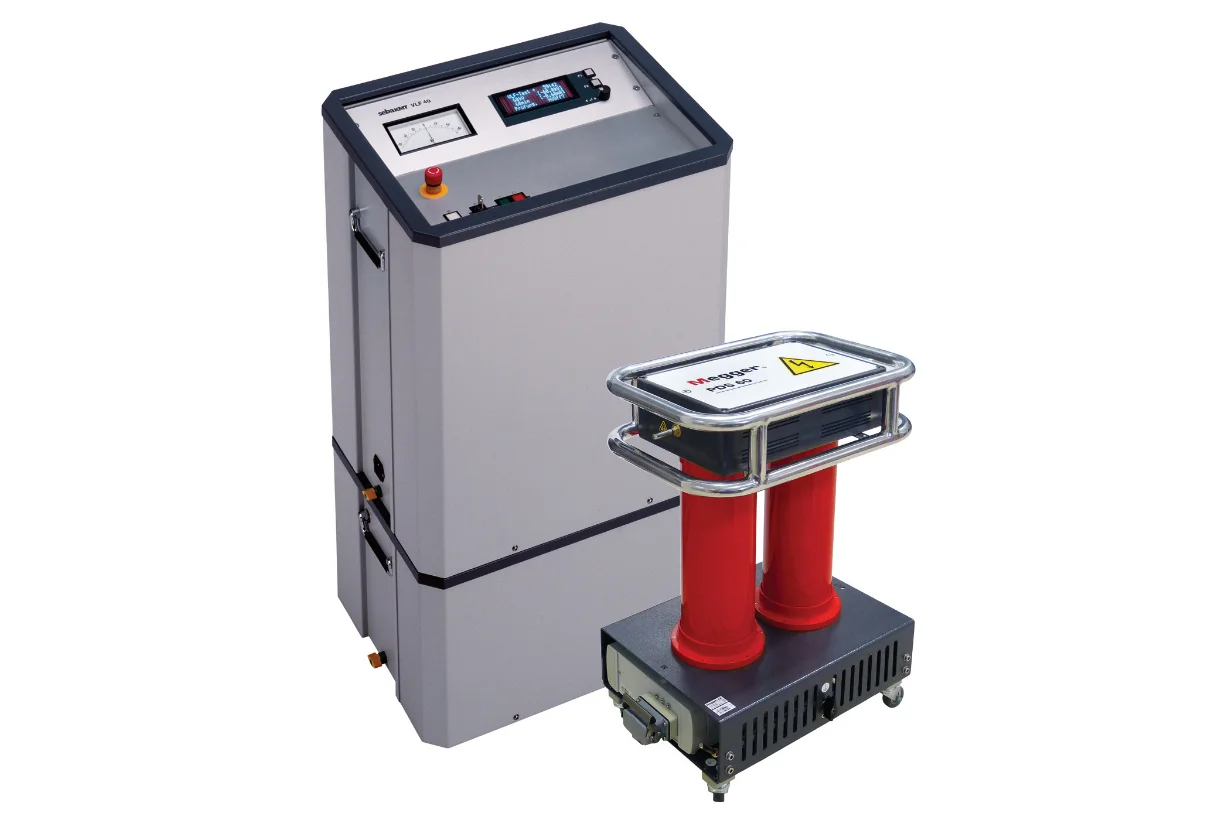

The Megger TDS NT is a versatile, two-part cable testing and diagnostic system for medium voltage cables up to 40/60 kV, utilizing VLF cosine-rectangular voltage for withstand testing, tan delta diagnostics, partial discharge analysis with the PDS 60, and sheath fault pinpointing.
With a high test capacitance of up to 3 µF, it supports simultaneous three-phase testing and complies with VDE, IEC, and IEEE standards. The IP54-rated system (85 kg + 48 kg, 550 x 1100 x 420 mm) features an integrated discharge system for safety and operates in -20°C to 50°C at 70% humidity. Its touchscreen interface offers automatic result interpretation and USB data transfer for detailed reporting with a single mouse click.
The kit includes the TDS NT 40/60 unit, HV cable set, mains cable (EU, UK, US, or AUS options), and accessory bag, with an optional 10 m PD-60 HV cable. No warranty is specified, making it ideal for comprehensive cable testing and diagnostics in field and offshore applications.
