Megger SPI4000 Smart Primary Injection Test System

Megger SPI4000 Smart Primary Injection Test System

Megger SPI4000 Smart Primary Injection Test System

Specification Sheet
  • Measurements: Output current (4000 A continuous, 40,000 A max, ±1-2%), trip time (0.1 ms-99999 s/cycles, ±1% ±2 ms), voltage (0-600 V, ±1%), CT ratios.
  • Functionality: Tests low-voltage breakers, switchgear, CTs, PowerDB software with STVI option, auto-adjusts firing angle for DC offset elimination, constant current output, digital ammeter (memory/continuous), timer, voltmeter, series output mode, Ethernet port, supports pickup/trip/ground fault tests, preloaded breaker curves, auto test reporting.
  • Design: Compact (233 kg, 78.8 x 86.4 x 53.5 cm), 480 V 60 Hz input (260-480 V auto-sense), rugged with solid/pneumatic wheels, stab adapters (CBS-1/CBS-2), forced-air cooling, ground interlock, 120 V 0.4 kVA outlet, meets EN 61010-1, FCC standards.
  • User-Friendly: Simplified PowerDB interface, manual/auto control (type-in current), STVI for PC-free testing, pass/fail results on breaker curves, automated current regulation, maneuverable, high-accuracy metering.
  • Complete Kit: SPI4000 (solid/pneumatic wheels), CBS-1/CBS-2 stab sets, stab adapter set, input leads (4.5 m), series stab bar, manual, one-year warranty, optional STVI, CBS-FLEX, CBS-3 stabs, test leads, alligator clips.

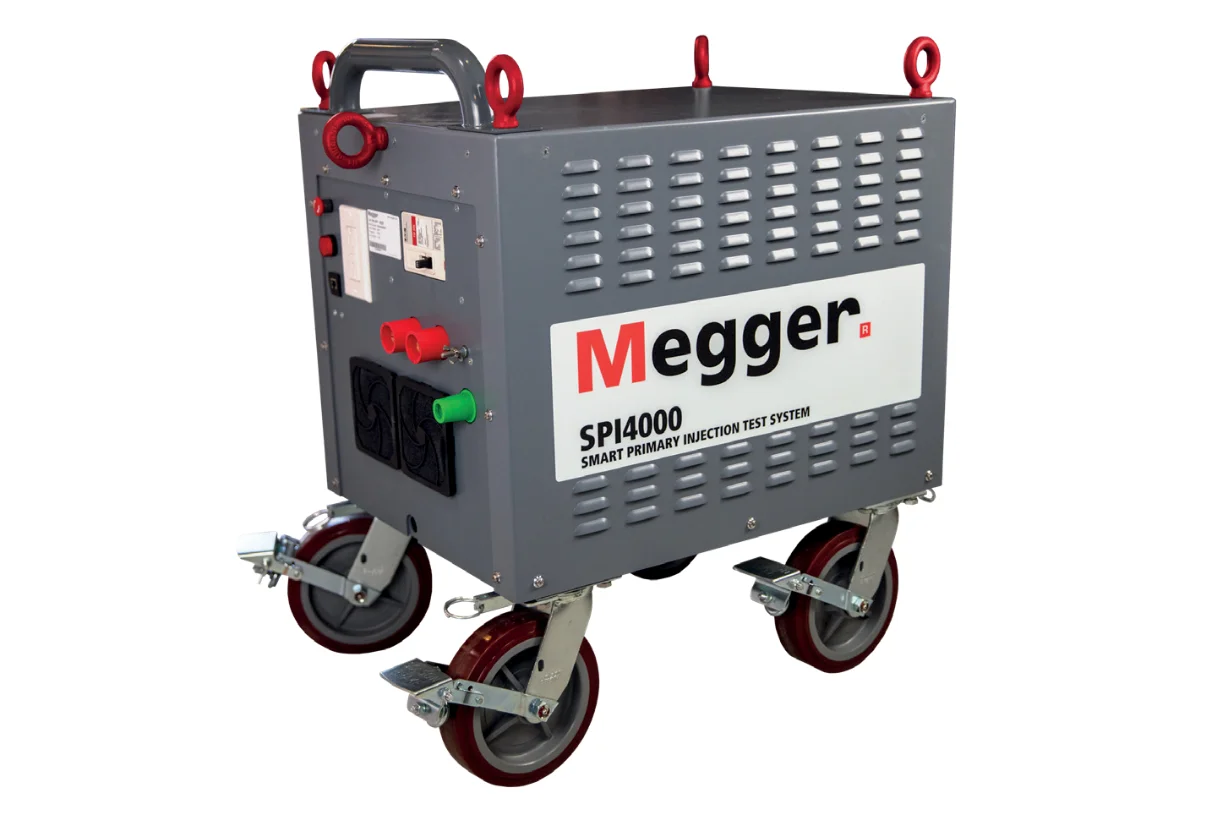

The Megger SPI4000 Smart Primary Injection Test System is a compact (233 kg), high-capacity system for testing low-voltage circuit breakers (up to 4000 A), switchgear, and current transformers, delivering up to 40,000 A. Controlled by PowerDB software (with optional STVI touchscreen), it features auto-adjusted firing angle to eliminate DC offset, constant current output, and precise measurements of current (±1-2%), trip time (±1% ±2 ms), and voltage (±1%).

Equipped with CBS-1/CBS-2 stab adapters, it supports series mode, automated testing with preloaded breaker curves, and instant pass/fail reporting via Ethernet. Housed in a rugged enclosure (78.8 x 86.4 x 53.5 cm) with wheels, it operates on 480 V (auto-senses 260-480 V) and includes safety features like ground interlock and forced-air cooling.

The kit comprises the SPI4000, stab sets, input leads, series bar, manual, one-year warranty, and optional accessories (STVI, CBS-FLEX, CBS-3, test leads), ideal for efficient field and industrial testing.
