Megger RTMS Relay and Test Management Software

Megger RTMS Relay and Test Management Software

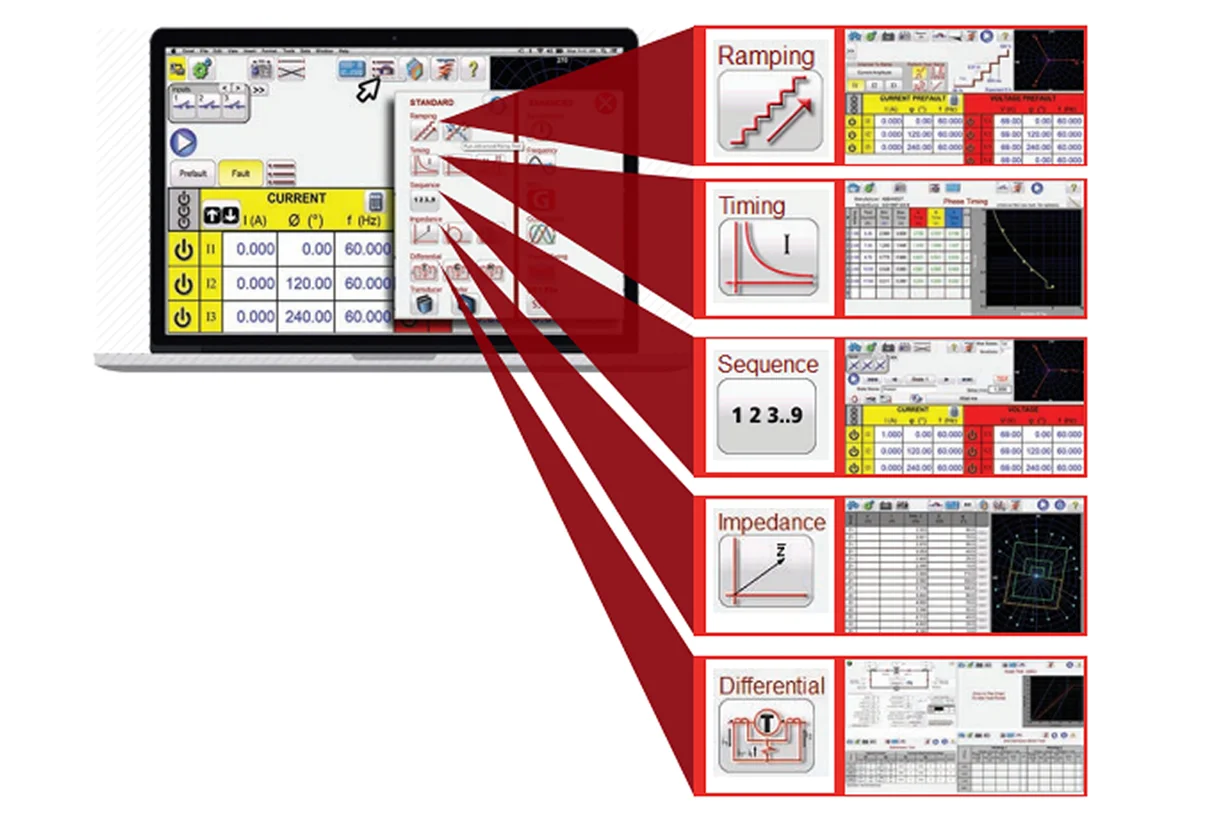

  • Measurements: Tests relay parameters (pickup, timing, impedance, differential, frequency, etc.), supports overcurrent, voltage, directional, sequence, and transducer/meter tests, records test results with pass/fail.
  • Functionality: Runs on Windows XP-11, supports SMRT/FREJA/STVI, Standard (manual/semi-auto tests, ramping, IEC 61850 GOOSE/SVA, harmonics, fault calculator) and Enhanced (synchronizer, ROCOF, COMTRADE, power swing, SS1 playback) versions, 200+ relay library, 400+ templates, impedance editor, multi-phase bus differential, PowerDB Pro integration for reporting/database.
  • Design: No license/dongle needed for Standard, Enhanced hardware-enabled, cloud template updates, operates offline/online, compatible with Android/iOS PowerDB Inspection, meets IEC 61850-5, scalable to SQL Server.
  • User-Friendly: Intuitive touchscreen interface, manual/auto testing, real-time vector/characteristic display, automated pass/fail, customizable test sequences (up to 200 states), fault calculator, supports relay setting imports (MCE/RIO/XRIO), extensive help resources.
  • Complete Kit: RTMS Standard (PC/STVI/SMRT/FREJA), manual, one-year warranty, optional Enhanced features via SMRT/FREJA hardware upgrade, PowerDB Pro for advanced database/reporting.

Megger RTMS Relay Test Management Software is a comprehensive Windows XP-11 compatible solution for managing protective relay testing with SMRT, FREJA, and STVI units, supporting simple to complex relays (overcurrent, impedance, differential).

RTMS Standard offers manual/semi-auto tests, IEC 61850 GOOSE/SVA, harmonics, and a 200+ relay library with 400+ templates, while Enhanced adds synchronizer, ROCOF, COMTRADE, and power swing tests. Featuring intuitive touchscreen navigation, real-time vector displays, and automated pass/fail reporting, it supports multi-phase testing (up to 30 currents) and integrates with PowerDB Pro for centralized database management and compliance tracking. Requiring no license for Standard, it includes cloud template updates and offline functionality.

The kit comprises RTMS Standard, manual, one-year warranty, with optional Enhanced upgrades, ideal for commissioning and maintenance in utility and industrial settings.
