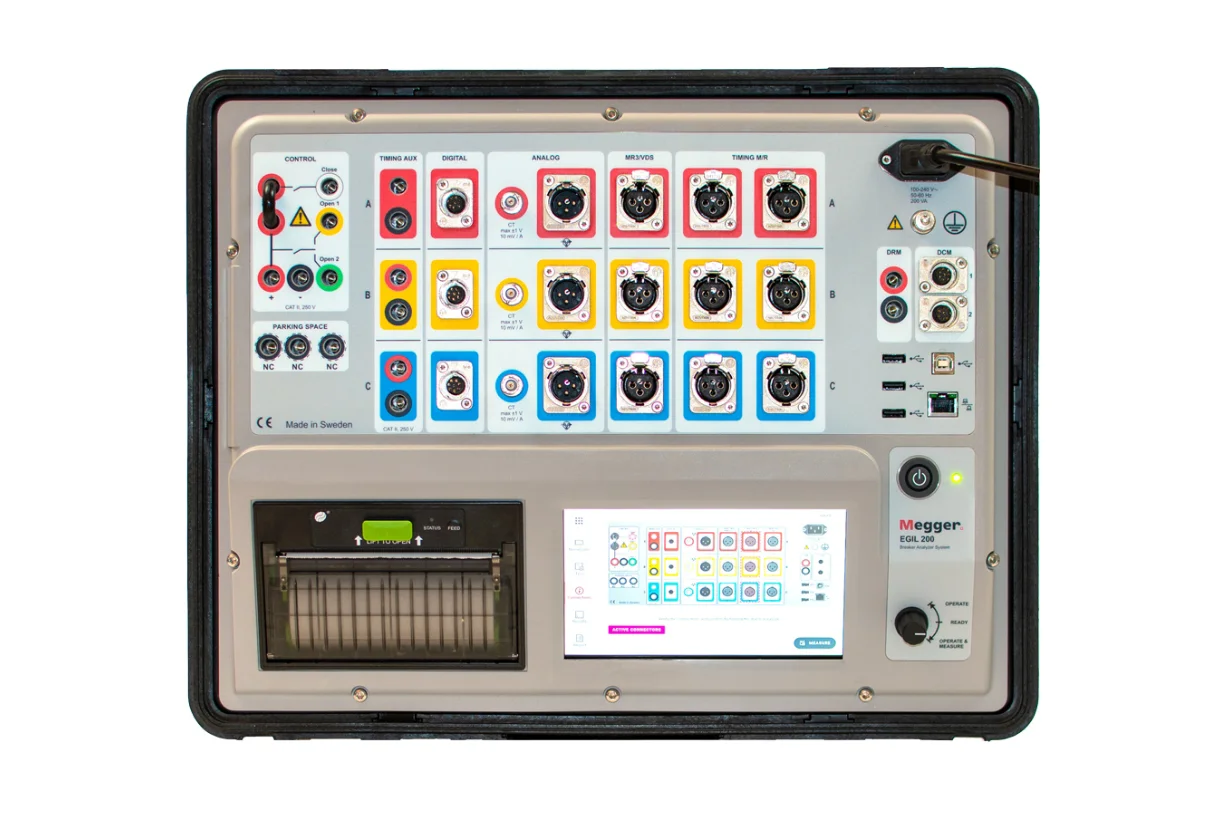

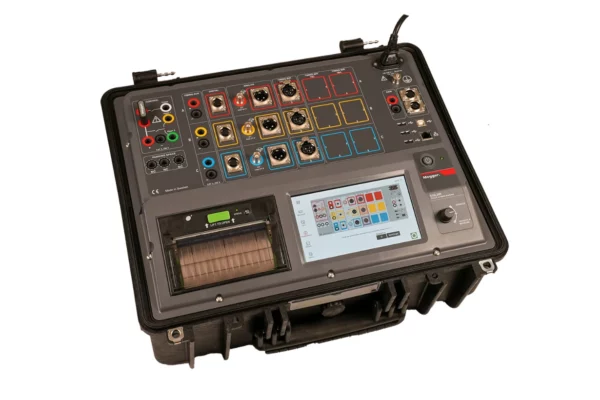

The Megger EGIL200 Circuit Breaker Analyser is a robust, mid-range solution engineered for medium and high-voltage circuit breaker testing, blending advanced features from the TM series with user-friendly operation. Available in configurations like EGIL211, EGIL213, EGIL223, EGIL241, and EGIL243, it supports one to four breaks per phase, catering to diverse breaker designs. Its three auxiliary timing channels, isolated for flexibility, handle both dry and wet contacts, while one or three analogue channels capture motion or other parameters with pinpoint ±1% accuracy. The analyser’s patented Active Interference Suppression technology delivers reliable pre-insertion resistor timing and resistance measurements, even in noisy environments. DualGround™ testing ensures safety by keeping both sides grounded, streamlining fieldwork. A 7-inch touchscreen, guides users through a workflow-based interface, minimising setup time, and supports English, French, German, Spanish, and Swedish.

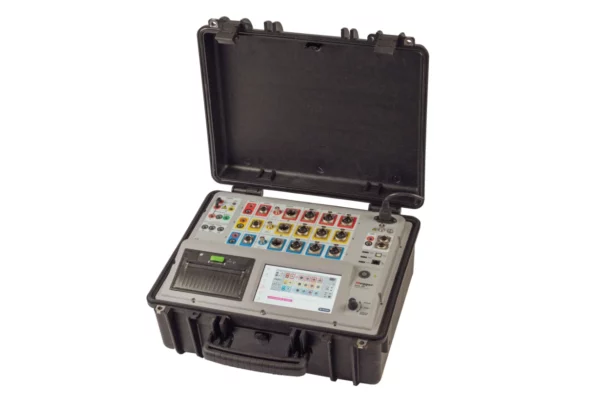

Control outputs manage close and dual open coils, with coil current and voltage monitoring for comprehensive diagnostics. Optional SDRM capabilities enable static and dynamic resistance tests, ideal for in-depth analysis. Housed in an IP67-rated case and accompanied by a practical backpack for accessories, the EGIL200 withstands harsh field conditions. With USB/Ethernet ports for EGIL200 Viewer software, one-click PDF reporting, and an optional 4-inch thermal printer, it simplifies data management and documentation, making it a versatile, dependable choice for engineers ensuring breaker reliability in critical power systems.
