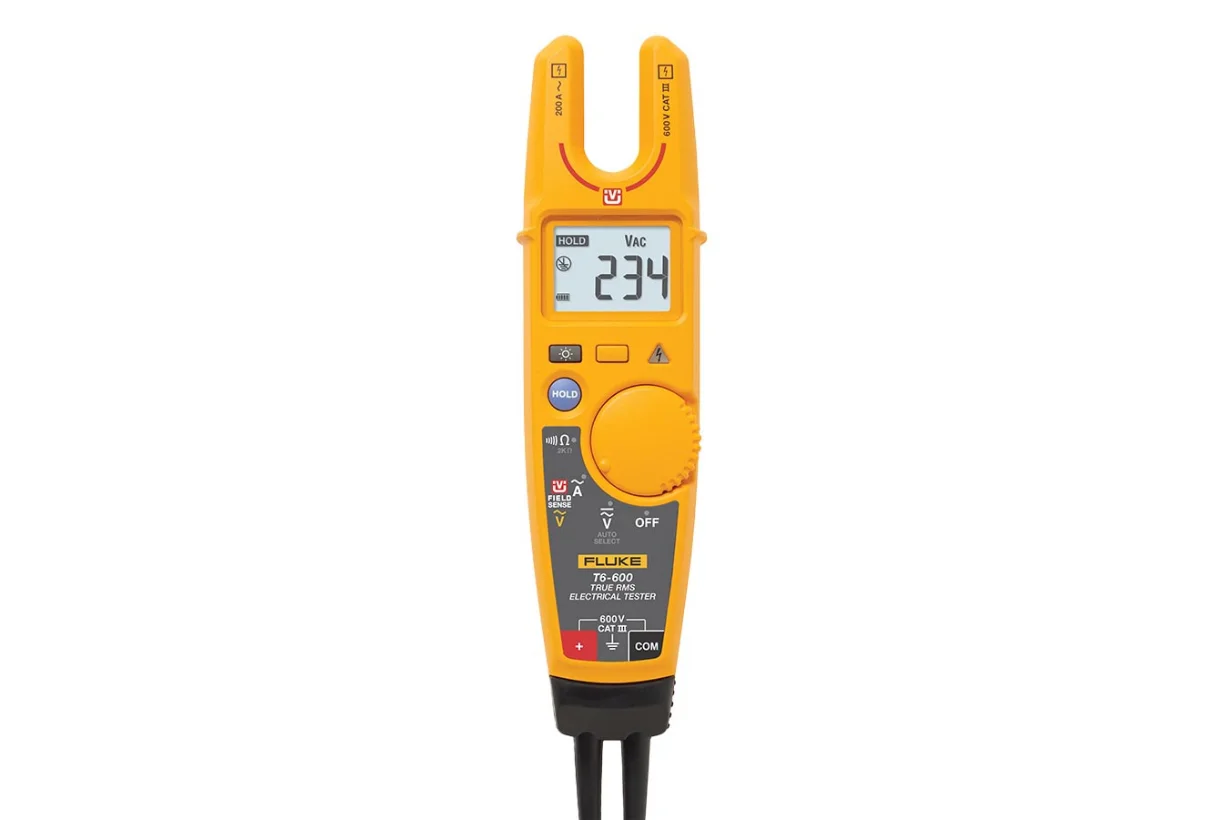

Key features
5 reasons the T6 belongs in your toolbelt
Be safer: Measure voltage to 600 V ac through the open fork, without test leads.
Be faster: No need to open covers or remove wire nuts.
Be more efficient: Simultaneously measure voltage and current.
Be everywhere: 17.8 mm open fork is widest in the industry; measure up to 200 A on 4/0 wires (120 mm2).
Go beyond simple detection. Actually measure ac voltage and current values without test leads.
Product Highlights
FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage*
See voltage or current display – shows all power supply measurements at a glance for efficient trouble shooting
1 to 600 V ac or dc (T6-600)
0 to 200 A ac
True-rms voltage and current
Resistance 1 Ω to 100 kΩ
Works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening
HOLD button temporarily freezes the reading for easy viewing
Easy to read display with backlight
Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
Standard two-year warranty; extendable to 4 years through product registration within 45 days of purchase+
Tips: FieldSense Technology
Do not hold or touch wire you are testing during a measurement. Use the black probe to make the ground connection if:
wearing gloves or insulated footwear
standing on an insulated ladder
additional ground contact is required for the application
FieldSense measurement looks like this when properly grounded:
Display color turns green
Display shows a valid measurement >16 V rather than dashes or 0.0
shows for measurement ≥30 V
* Voltage measurement requires capacitive path to ground, provided through user in most applications. Ground connection via test lead may be required in some situations.
+ Register product online within 45 days of purchase to extend warranty to four years. See http://a.fluke.com/registration for details. Two-year additional warranty offer may be discontinued without notice
