Key Features:

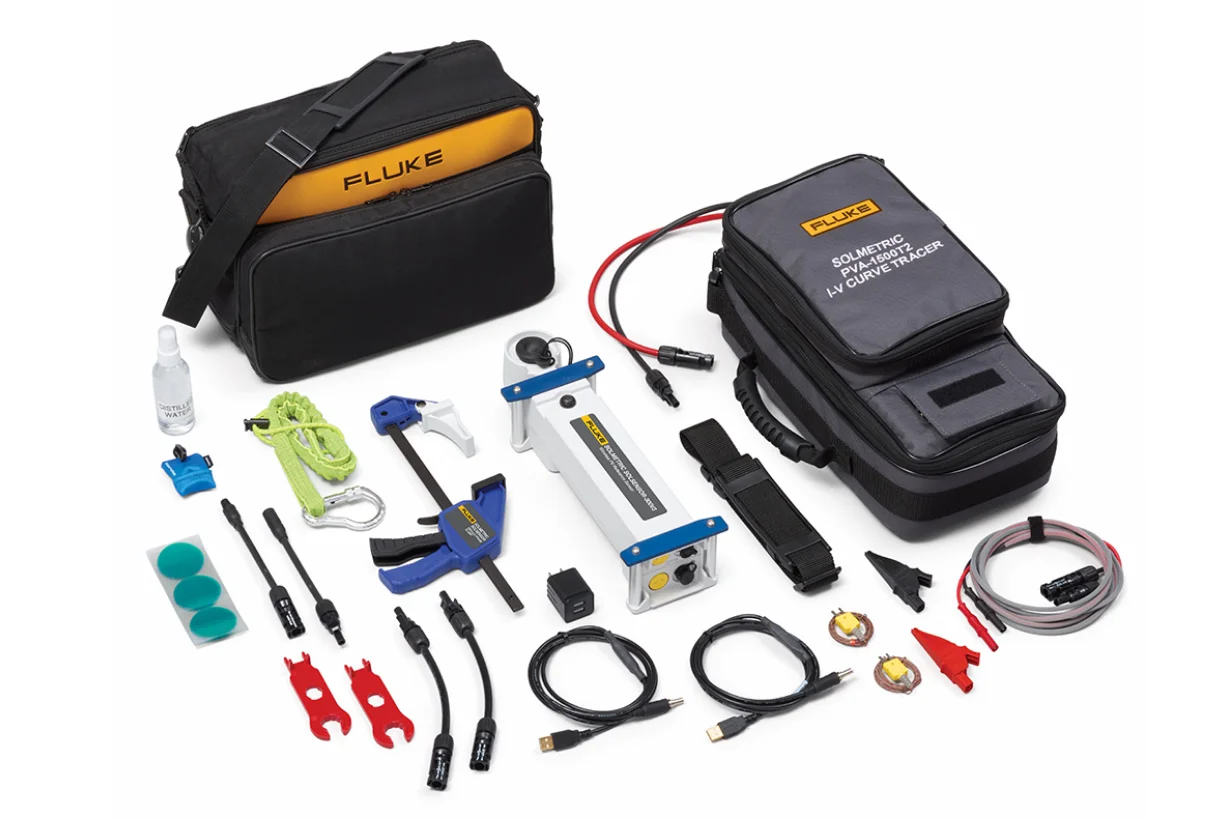

The Fluke PVA-1500 Series PV Analyser provides advanced I-V curve tracing for commissioning, maintenance, troubleshooting, and performance verification of photovoltaic systems. Fluke designed this high-precision analyser to help technicians quickly assess solar array health and maximise energy production.
The analyser measures and displays I-V curves up to 1500 V DC and 30 A, making it suitable for modern utility-scale and commercial PV installations. As a result, users can accurately evaluate string and module performance under real operating conditions.
The PVA-1500 generates I-V and P-V curves while calculating key parameters such as Isc, Voc, Imp, Vmp, Pmax, fill factor, and performance factor. In addition, its built-in PV model instantly compares measured results with expected performance to identify potential issues.
The included SolSensor™ wireless reference sensor measures irradiance, module temperature, and array tilt. Therefore, technicians can obtain more accurate performance calculations and standard test condition corrections directly in the field.
With sweep-to-sweep delays of less than 9 seconds, the analyser can measure up to 3.5 MW of PV capacity per hour. Furthermore, wireless connectivity between the analyser, SolSensor™, and Windows-based software improves mobility and simplifies field testing.
The integrated software automates data management, analysis, and reporting. Meanwhile, a database containing more than 70,000 solar modules helps streamline setup and performance evaluation.
With high-speed I-V curve tracing, wireless operation, and advanced analysis tools, the Fluke PVA-1500 Series provides a complete solution for solar PV commissioning, diagnostics, auditing, and long-term performance monitoring.
