Fluke 710 Loop Valve Tester

Fluke 710 Loop Valve Tester

  • Built-in valve tests (signature, speed, step, manual, bump/partial stroke) with Good/Marginal/Bad results.
  • HART communication for valve diagnostics, autotrim, and configuration of up to 20 devices.
  • 0.01% accuracy for mA (0-24 mA) and voltage (0-30 VDC) measurement/sourcing.
  • Data logging captures 4910 records or 99 sessions, exportable via ValveTrack software.
  • Quick-Set knob and backlit LCD ensure fast setup and visibility in cramped spaces.
  • Built-in 250-ohm HART resistor and 24 V loop power streamline testing.
  • Compact, rugged design with 40-hour battery life from six AAA batteries.

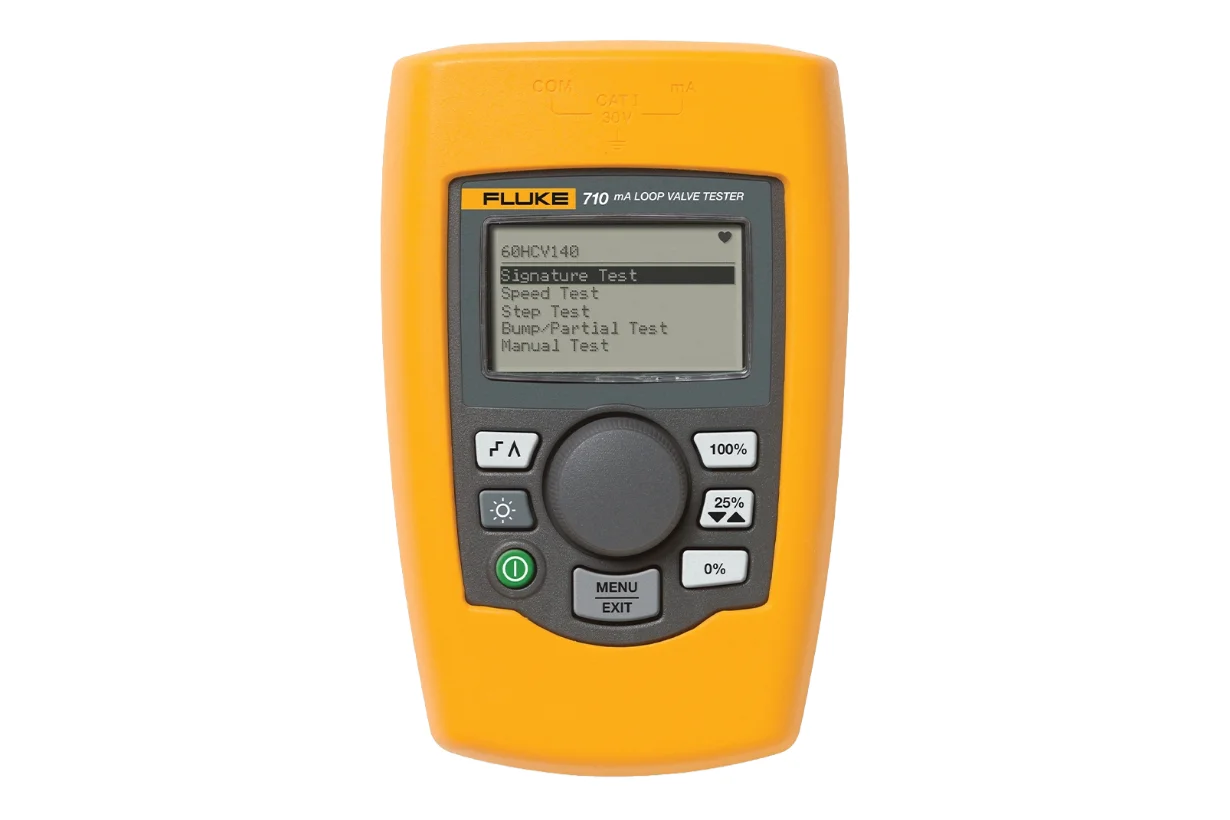

The Fluke 710 mA Loop Valve Tester is a smart, compact tool that takes the hassle out of testing HART smart control valves, delivering quick diagnostics and precise loop calibration. With built-in test procedures—signature, speed, step, manual, and bump/partial stroke—it provides clear Good, Marginal, or Bad valve health assessments at a glance, empowering faster maintenance decisions.

Its HART communication supports autotrim, PV range adjustments, and configuration storage for up to 20 devices, while data logging captures 4910 records or 99 sessions for troubleshooting, exportable as .csv or .txt via ValveTrack software. Offering 0.01% accuracy for 0-24 mA and 0-30 VDC, the 710 also features a 250-ohm HART resistor, 24 V loop power, and a Quick-Set knob for intuitive operation.

The backlit LCD shines in tight, dark spaces, and the rugged design, with 240 VAC protection and a 40-hour battery life from six AAA batteries, ensures reliability. Backed by a three-year warranty, the Fluke 710 is a technician’s go-to for efficient valve testing and loop tuning with a touch of modern connectivity.
