Key Features:

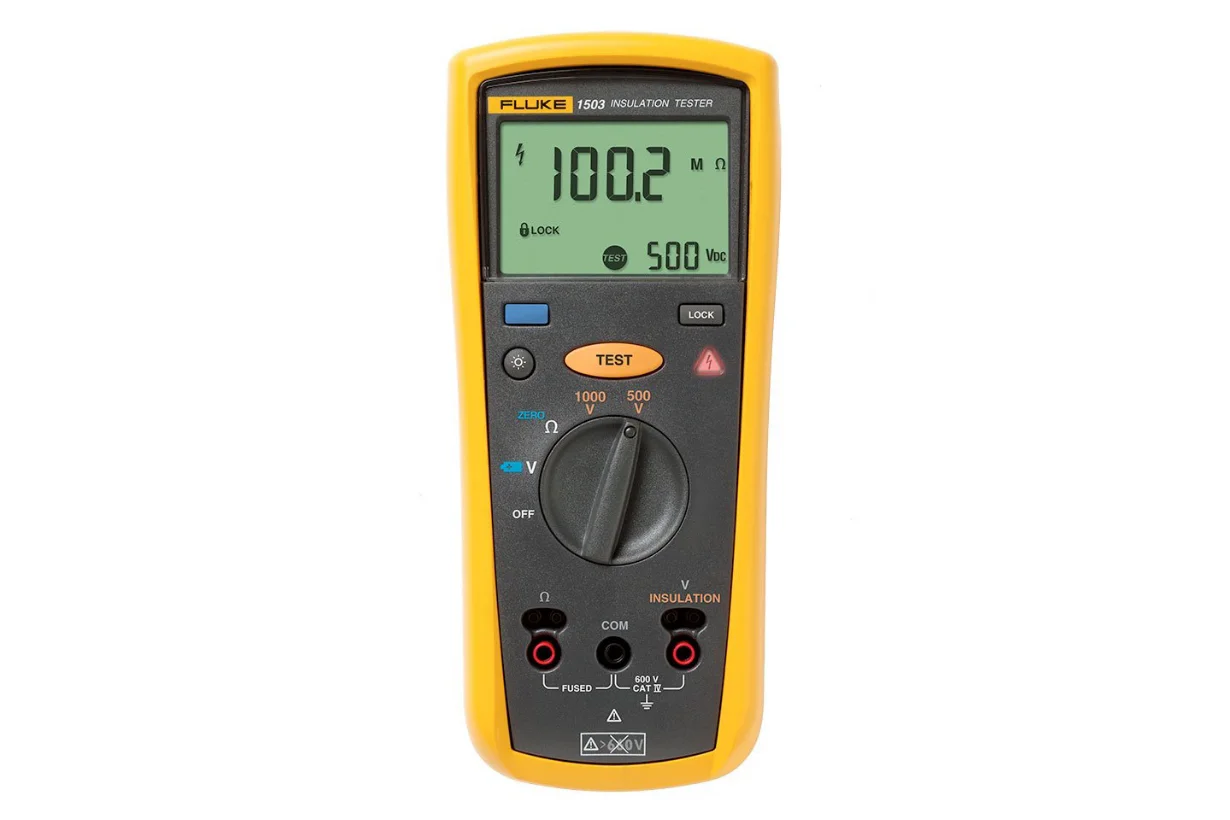

The Fluke 1503 Insulation Resistance Meter provides reliable insulation testing for residential and commercial electrical installations. Fluke designed this compact tester for electricians who need a straightforward and dependable solution for insulation verification and troubleshooting.
The Fluke 1503 performs insulation resistance tests from 0.01 MΩ to 2000 MΩ using selectable 500 V and 1000 V test voltages. As a result, users can assess the condition of cables, motors, switchgear, and electrical systems with confidence.
Built-in live circuit detection prevents insulation testing when voltage above 30 V is present. This feature improves user safety and helps protect the instrument from accidental misuse.
The meter also measures AC and DC voltage up to 600 V and performs low-ohms continuity testing with a 200 mA test current. Therefore, technicians can complete several common electrical tests using a single instrument.
An automatic discharge function removes stored capacitive voltage after insulation testing. In addition, the large backlit display provides clear readings in poorly lit environments and electrical cabinets.
The included remote probe simplifies repetitive and hard-to-reach testing tasks. Furthermore, the auto power-off function helps extend battery life, allowing the tester to perform up to 1,000 insulation tests on a set of batteries.
Its rugged construction, compact design, and CAT IV 600 V safety rating make the Fluke 1503 suitable for demanding field use. For electricians who require dependable insulation testing at an affordable price, the Fluke 1503 offers a practical and efficient solution.
