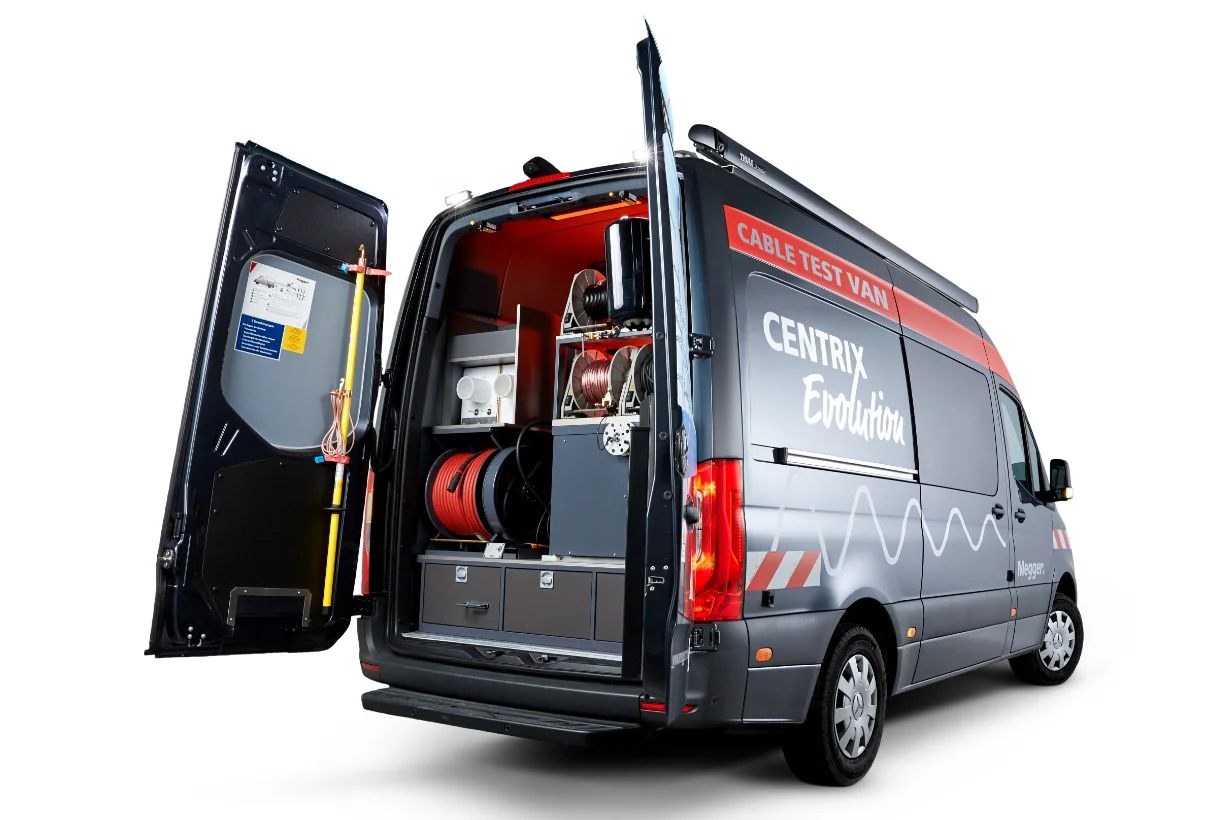

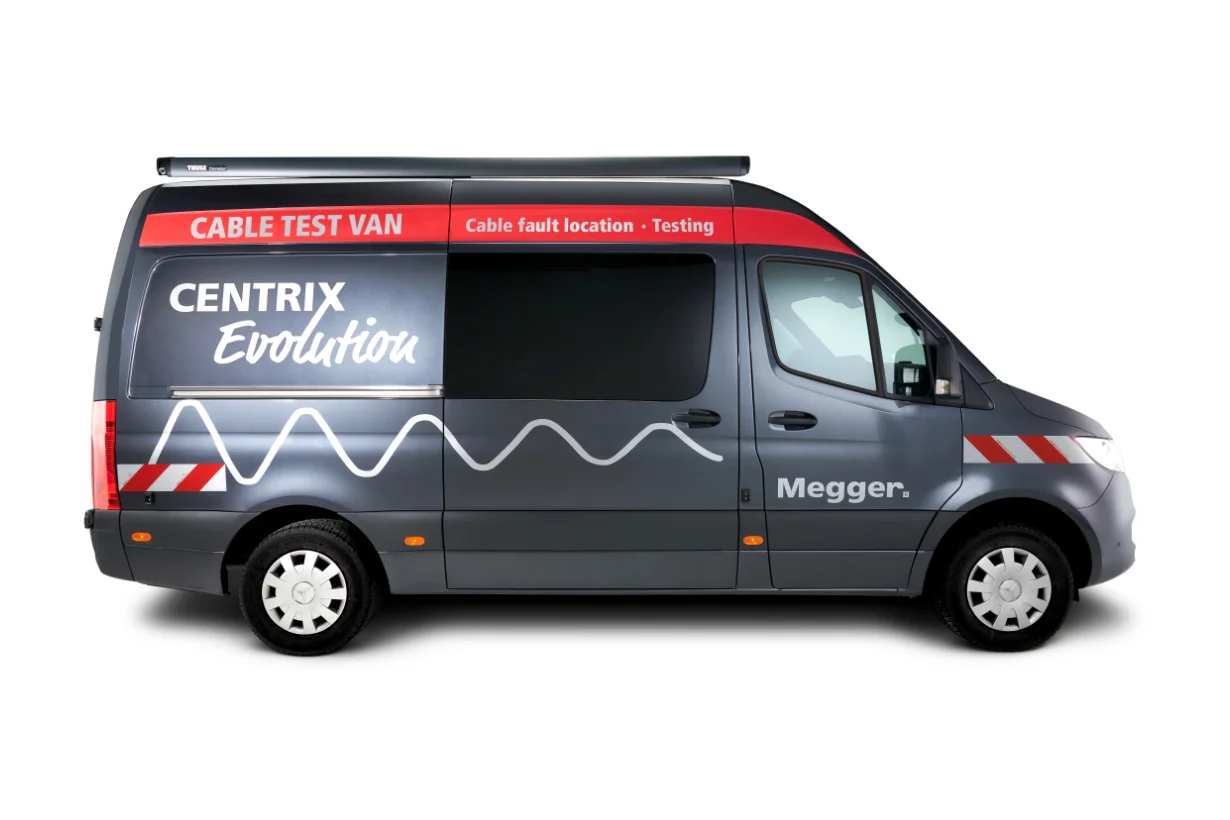

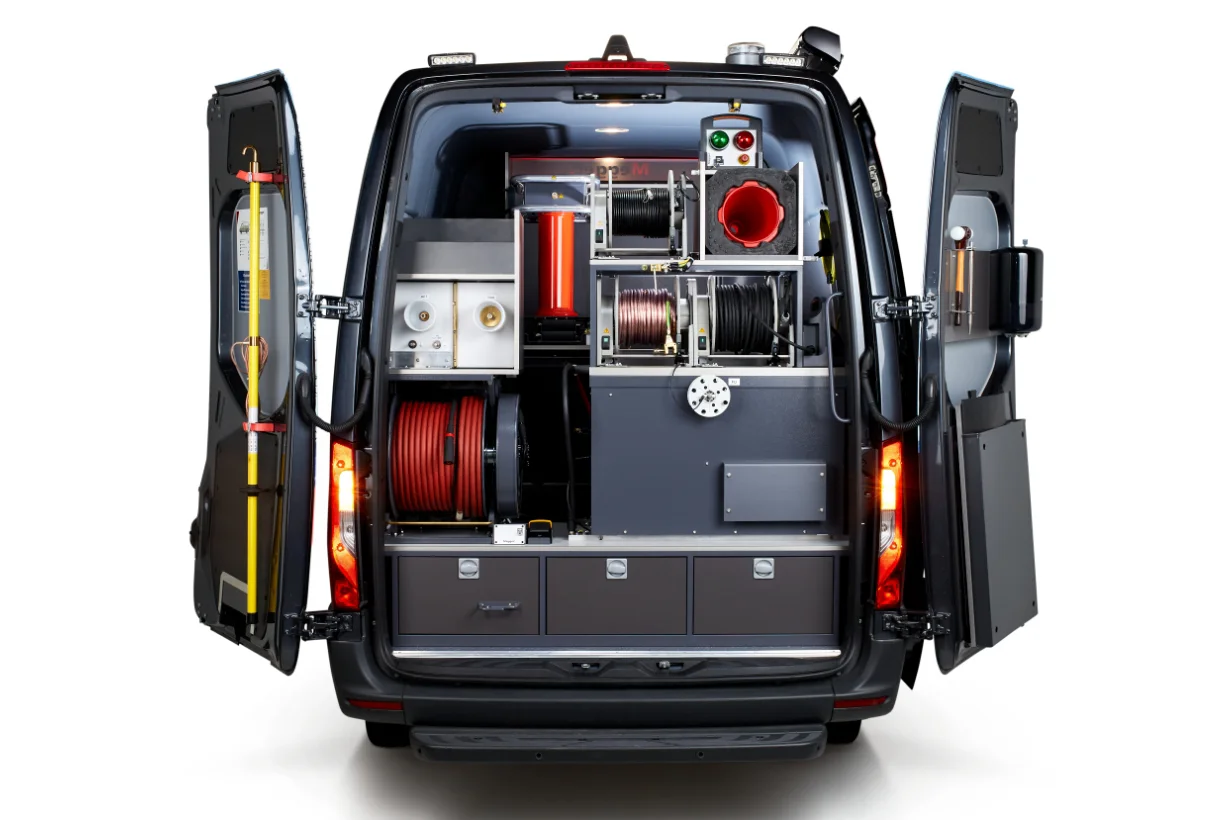

Megger Centrix Evolution – Cable Test Van

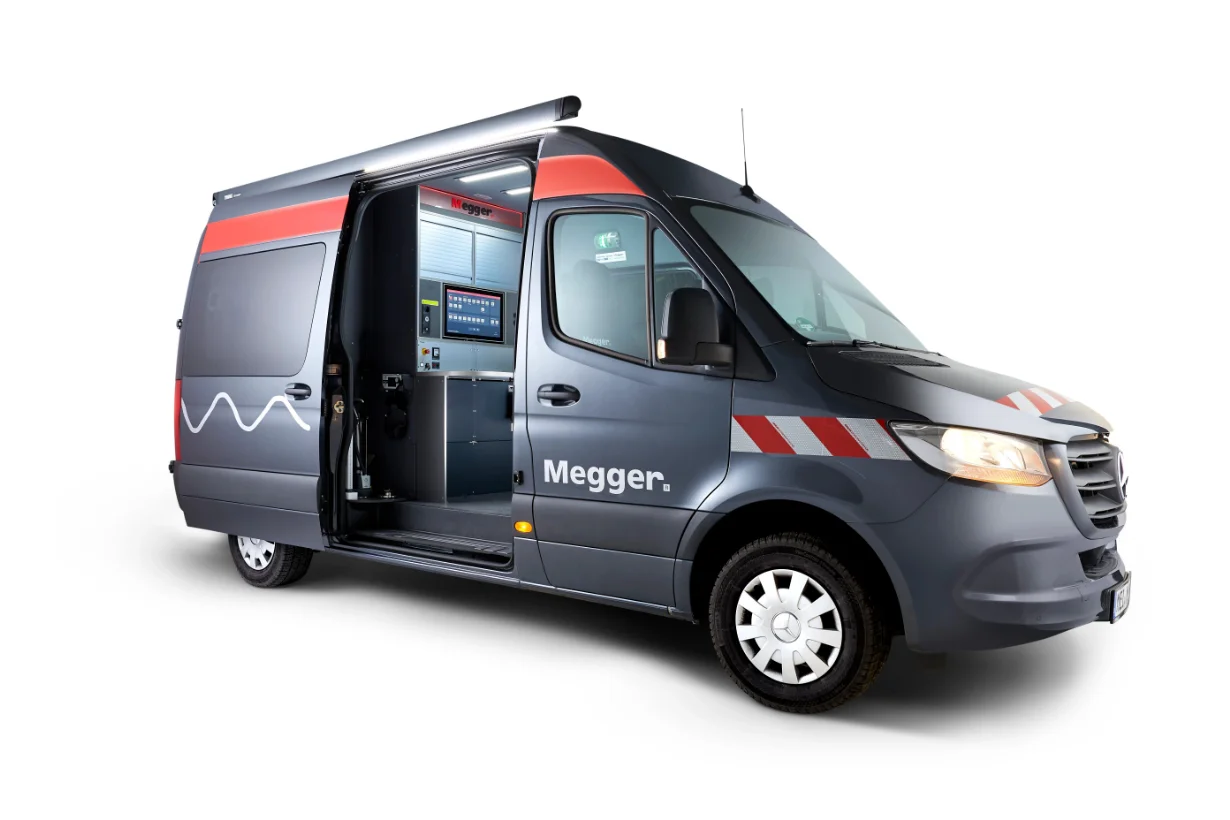

• Centrally controlled with multi-touch 21.5″ Full HD display and jog dial for intuitive operation across all modes.
• Supports DC hipot up to 80 kV, insulation testing, and radar with 1280 km range at 0.1 m resolution.
• Employs HV prelocation methods like ARM Multishot, ICE, and Decay for accurate fault identification.
• Features surge generator up to 4000 J with adjustable rates, plus burning for fault conversion.
• Includes options for VLF testing up to 62 kV, Tan Delta, and IEC-compliant PD diagnostics.
• Ensures safety with SafeDischarge, interlocks, and monitoring of earth potentials

The Megger Centrix Evolution serves as a comprehensive, Linux-based system for cable fault location, testing, and diagnostics, available in single- or three-phase configurations starting at 80 kV. It automates processes via motorised HV switches, covering DC hipot, radar-based prelocation, surge pinpointing, and sheath fault methods. Optional expansions add VLF cosine-rectangular or sine wave testing up to 60 kVRMS, alongside DAC and Slope for PD-monitored assessments. Data handling uses MeggerBook 3 with USB/cloud sync, while robust safety includes inherent discharging, RCD protection, and wide environmental tolerance from -25°C to +55°C.
